HUP xc20 MTB hardtail frame

HUP xc20 MTB hardtail frame

Regular price £400.00 GBP
Regular price £400.00 GBP Sale price £400.00 GBP
Sale Sold out
Tax included.

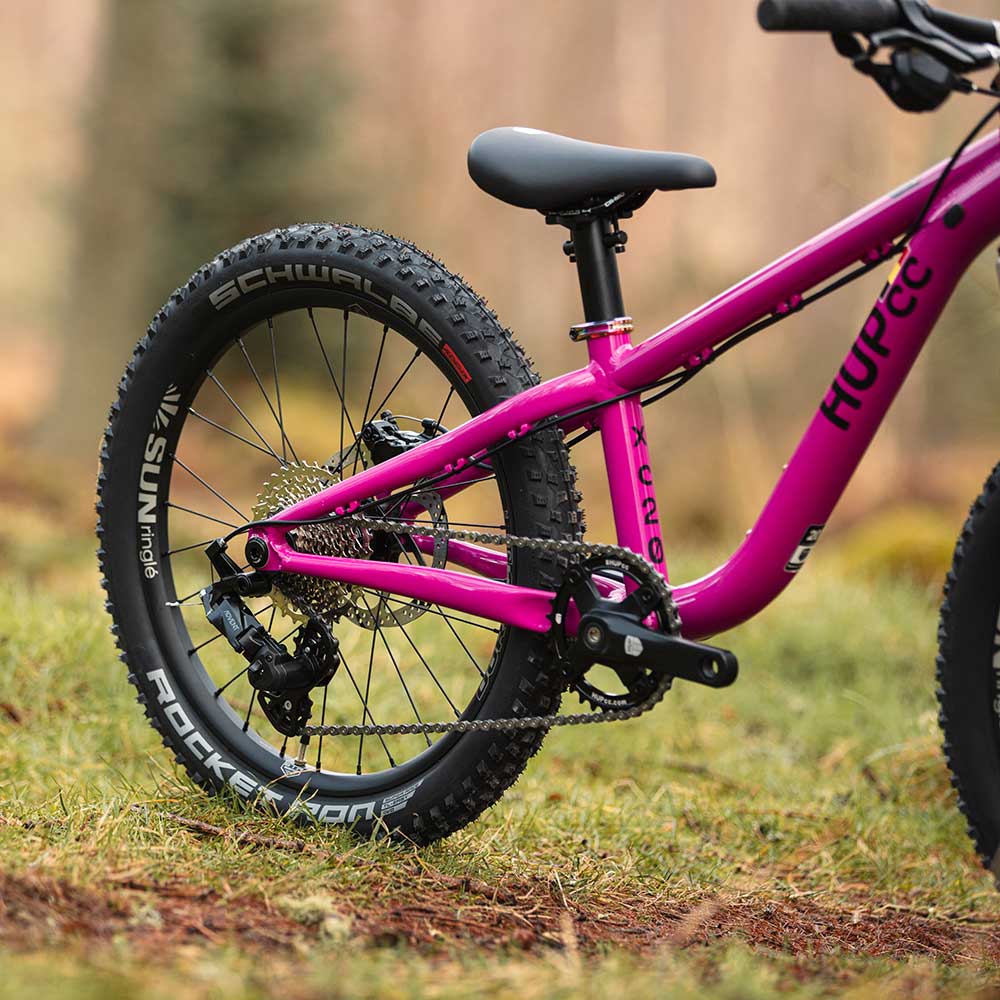

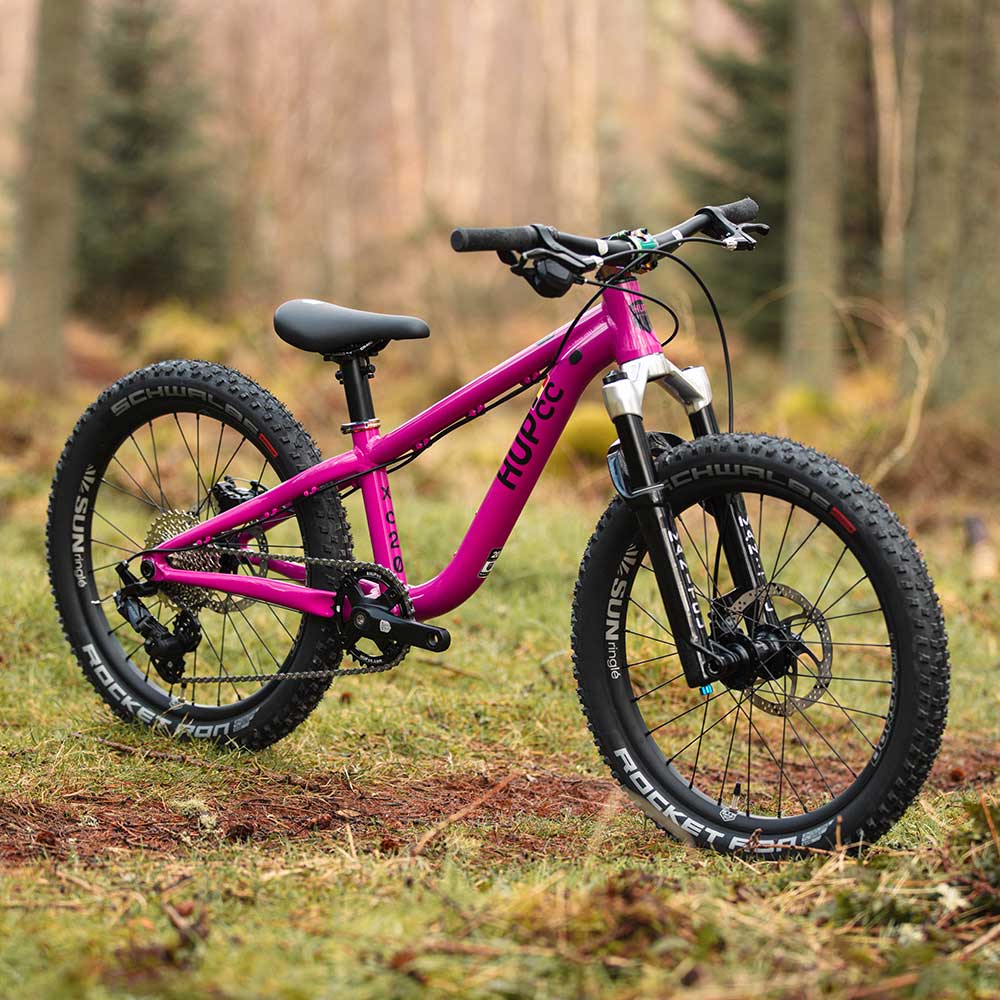

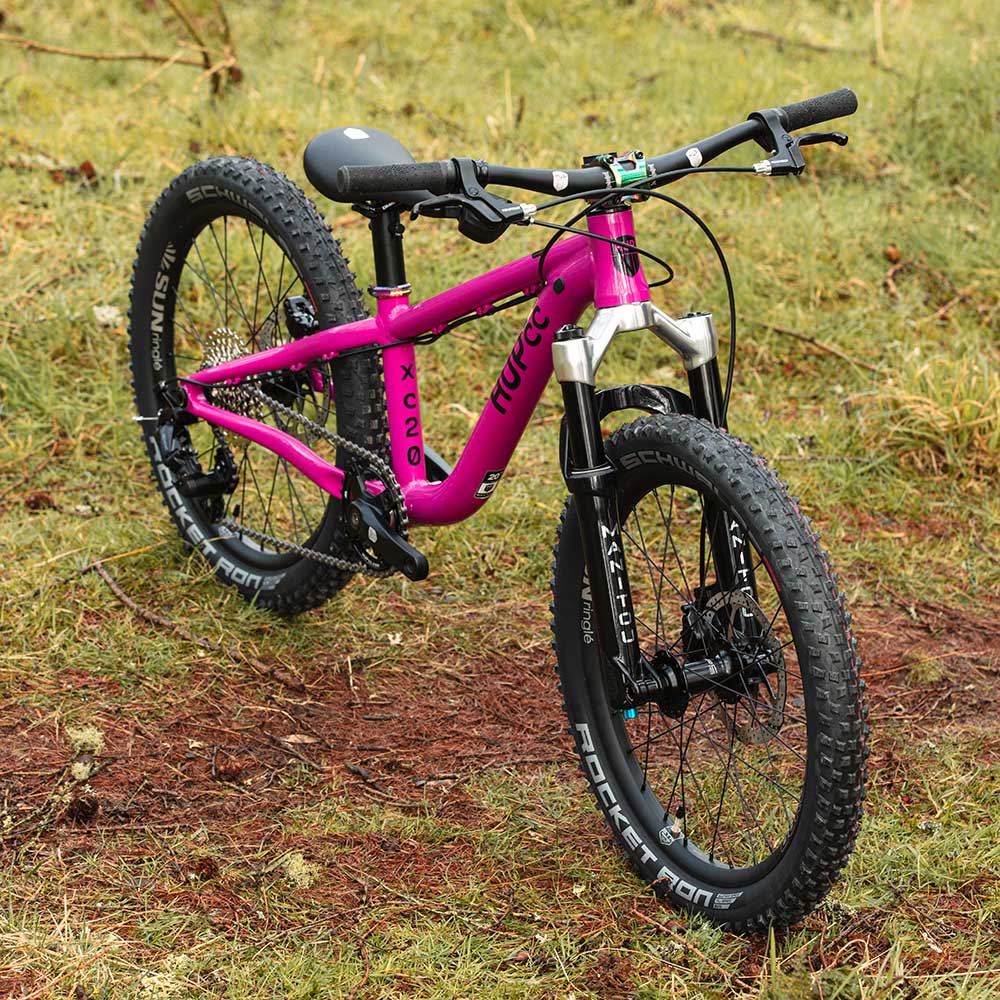

The HUP xc20 is a lightweight hardtail 20" wheeled MTB for cross-country trails, adventure or just plain fun. Born and raised at the UCI MTB World Champs in Glentress, Scotland in 2023, it's a double-butted 7005 frame with thru-axles, UDH hanger and modern XC geometry. A rocketship of a bike for riders age 4+

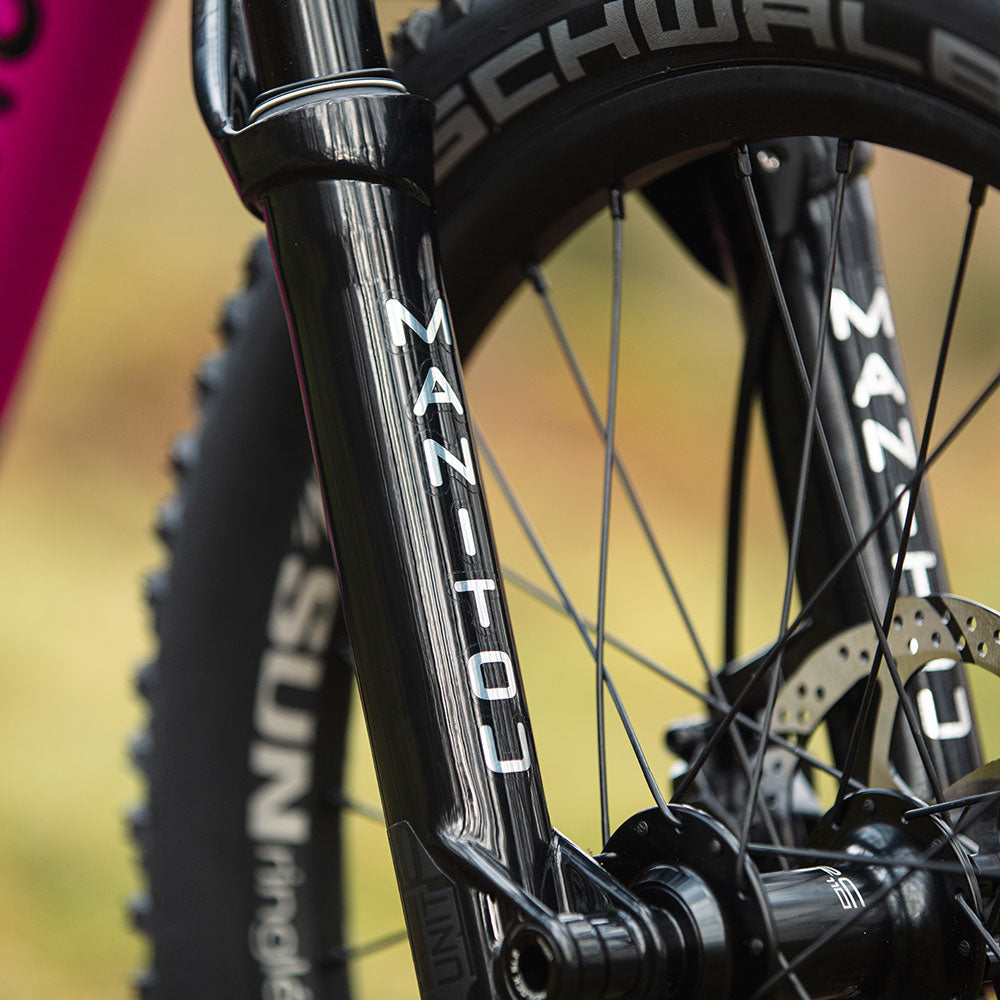

  • Progressive Geo: low standover, slack 66º fork, short stays and 100mm or 120mm forks

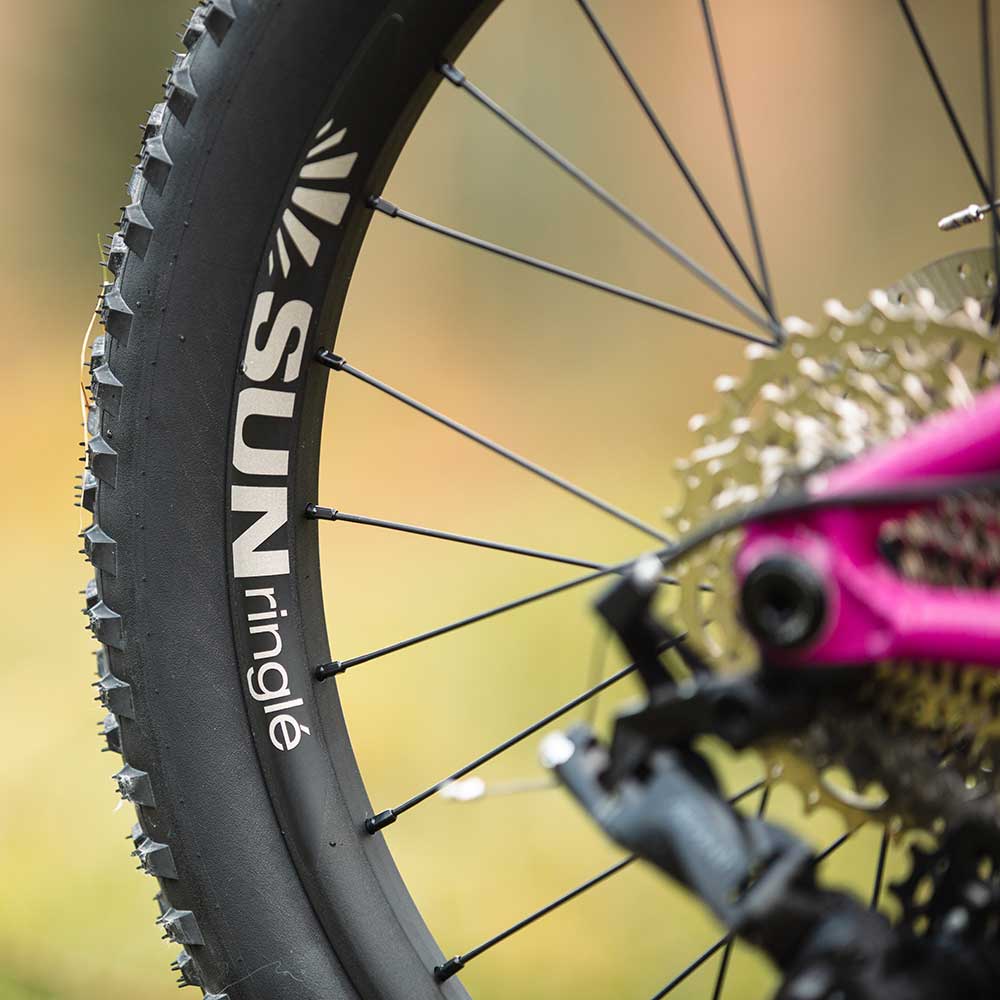

  • Full Size Wheels: 406mm 20" wheels on a compact frame, running up to 2.4" tyres
  • Lightweight: double-butted 7005, UDH hanger - with builds as light as 8.5kg

Lightweight for the climbs (we believe it's easily the lightest 20" Aluminium frame on the market), but still highly capable on the fun descents, bike park trails and sweeping berms. The low standover/low stack gives riders the space to move on the tech sections. Big wheels for it's rider's size, kids-specific geometry (slightly slacker fork angle) and correct fitting components create an agile, responsive and seriously fun bike. The tiny squad had epic days out testing and developing the HUP xc in the Glentress forest, near Peebles.

The frame fits riders from approx 105cm upwards with a low maintenance design featuring full length outer cabling (including the option to fit a dropper post) plus the latest standards such as 12mm thru-axles, 2.4" tyre clearance and a tapered head tube - ensuring future compatibility. SRAM's Universal Deraillieur Hanger system (UDH) also brings the ease of a widely available hanger - so you don't get stuck on the trails after a tumble.

Included with this frame: frame, headset, mech hanger, thru-axle & cable fittings. HUP frames are handmade/painted in Taiwan. Frame protection tape is highly recommended.

Frame Material: Aluminium Alloy 7005 (double-butted)
Frame Weight: approx 1190g

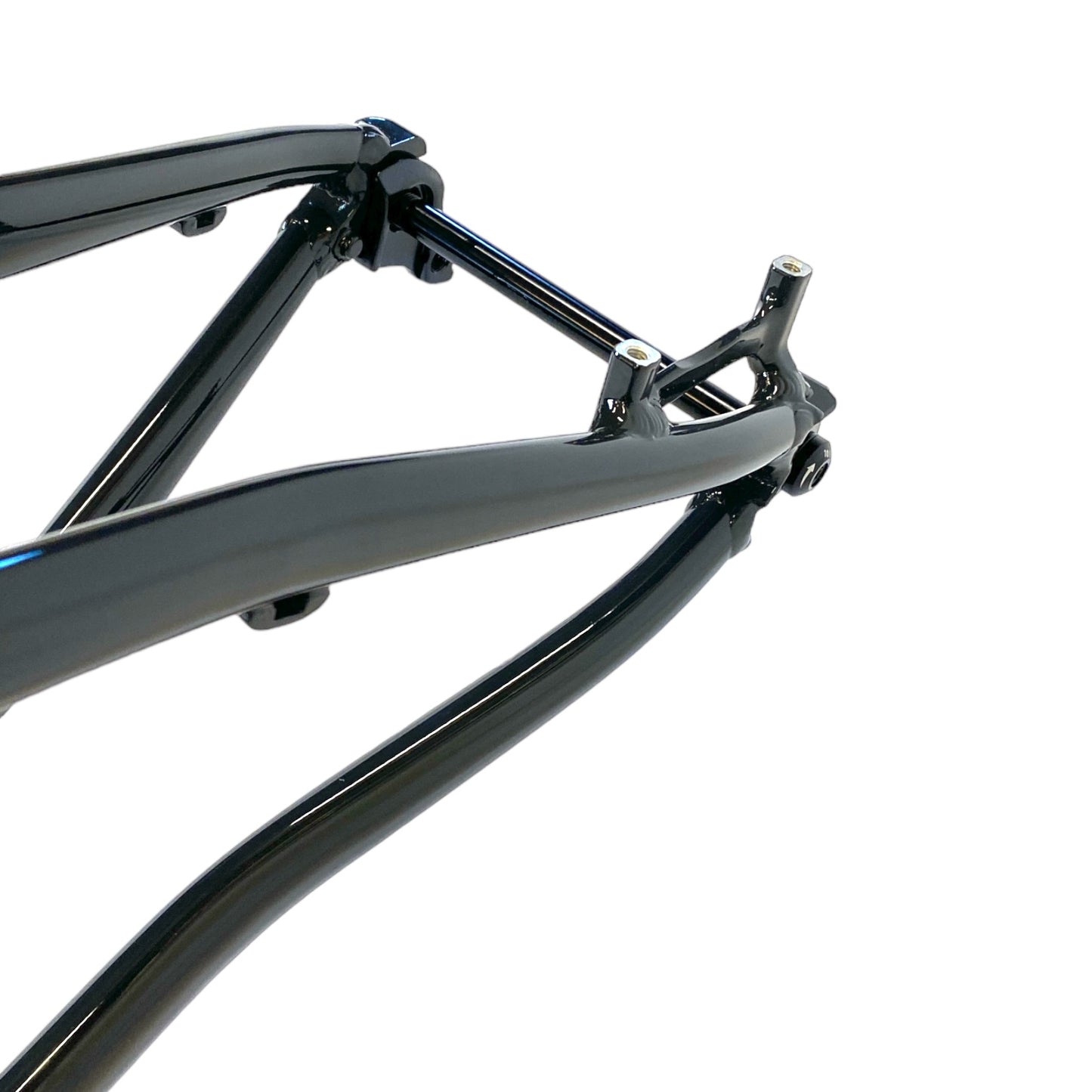

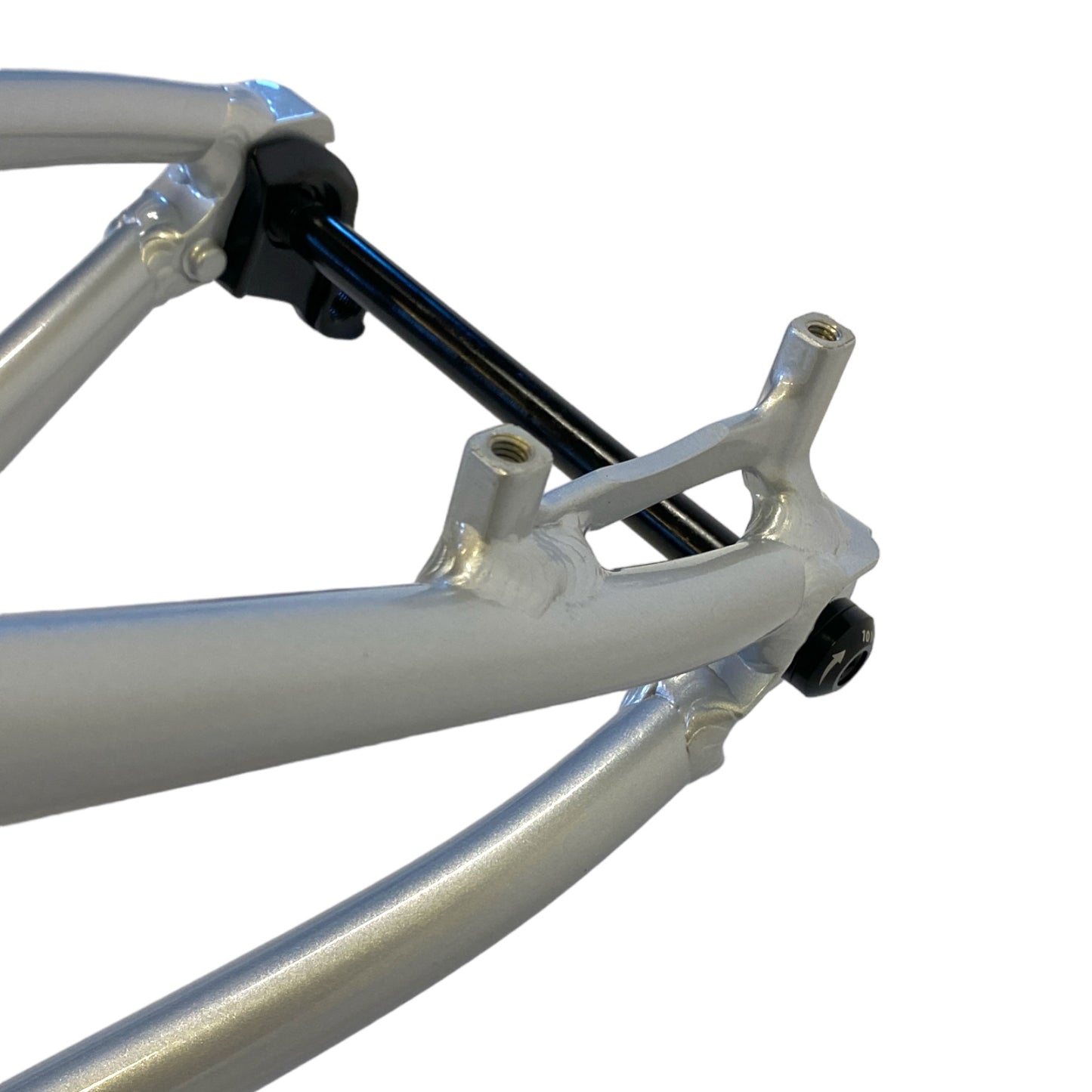

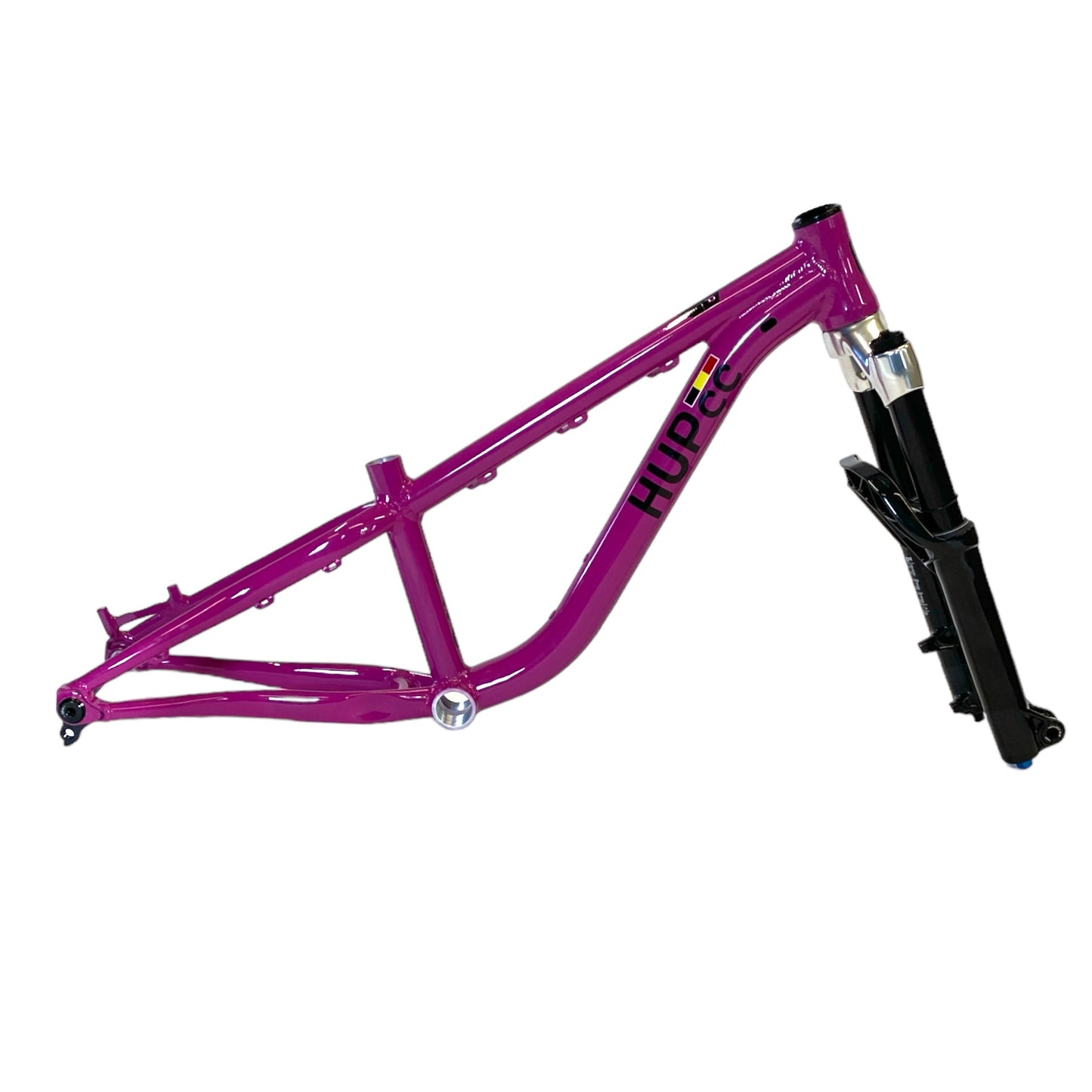

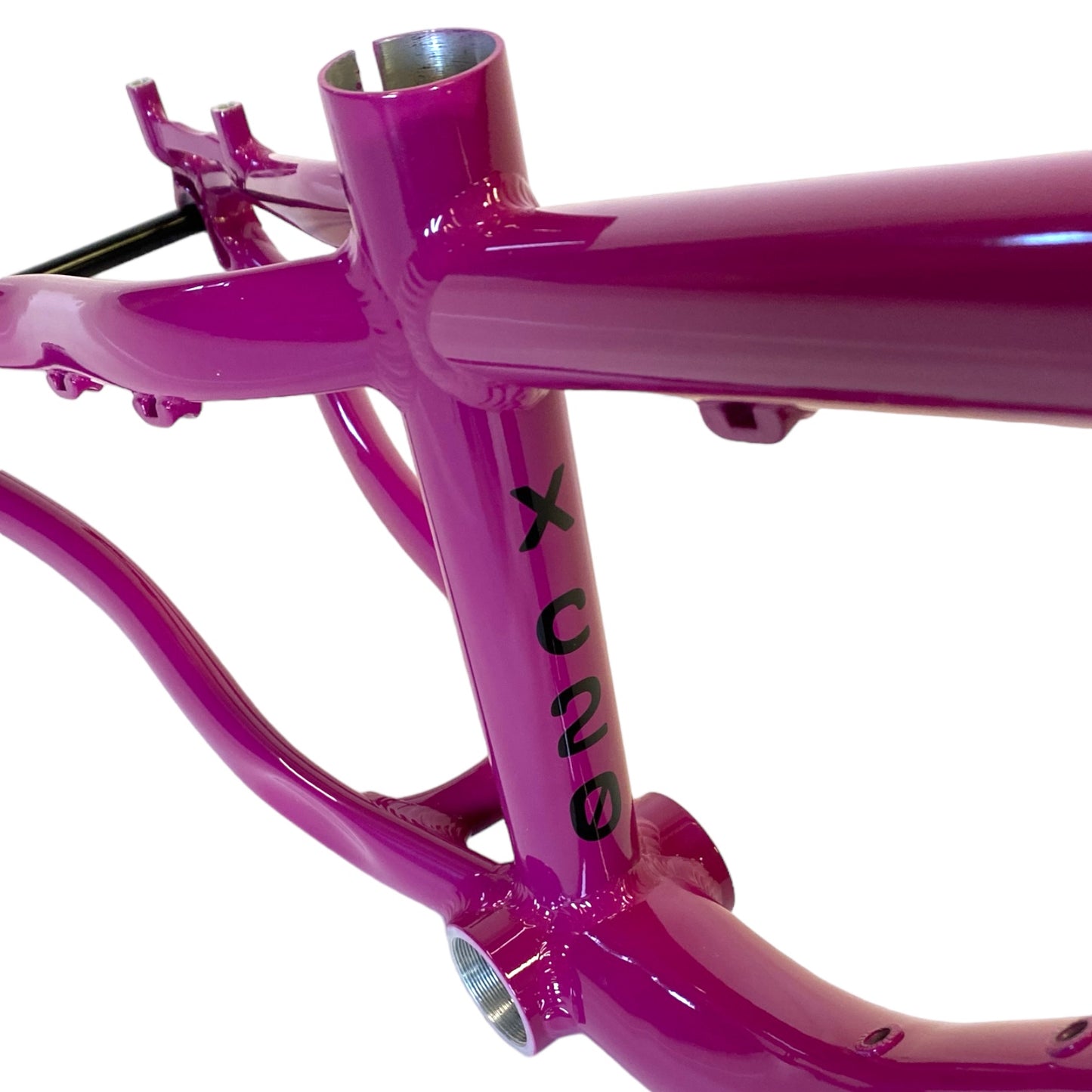

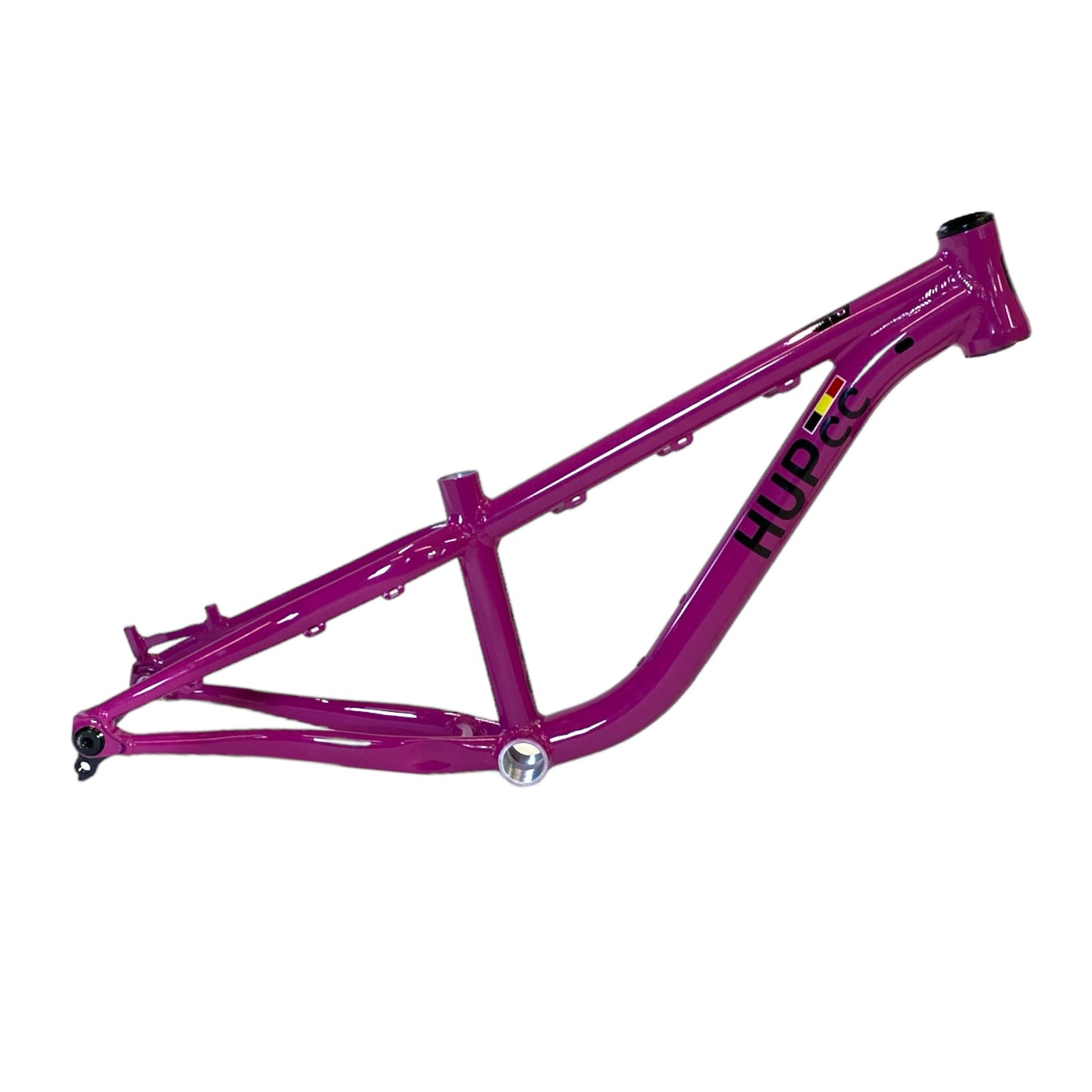

Colours: Grey, Purple or Silver (we always recommend you fit frame protection tape)
Headset: Lightweight FSA No.42 ACB sealed bearing
Brake Type: Post mount disc: 160mm or 180mm rotors

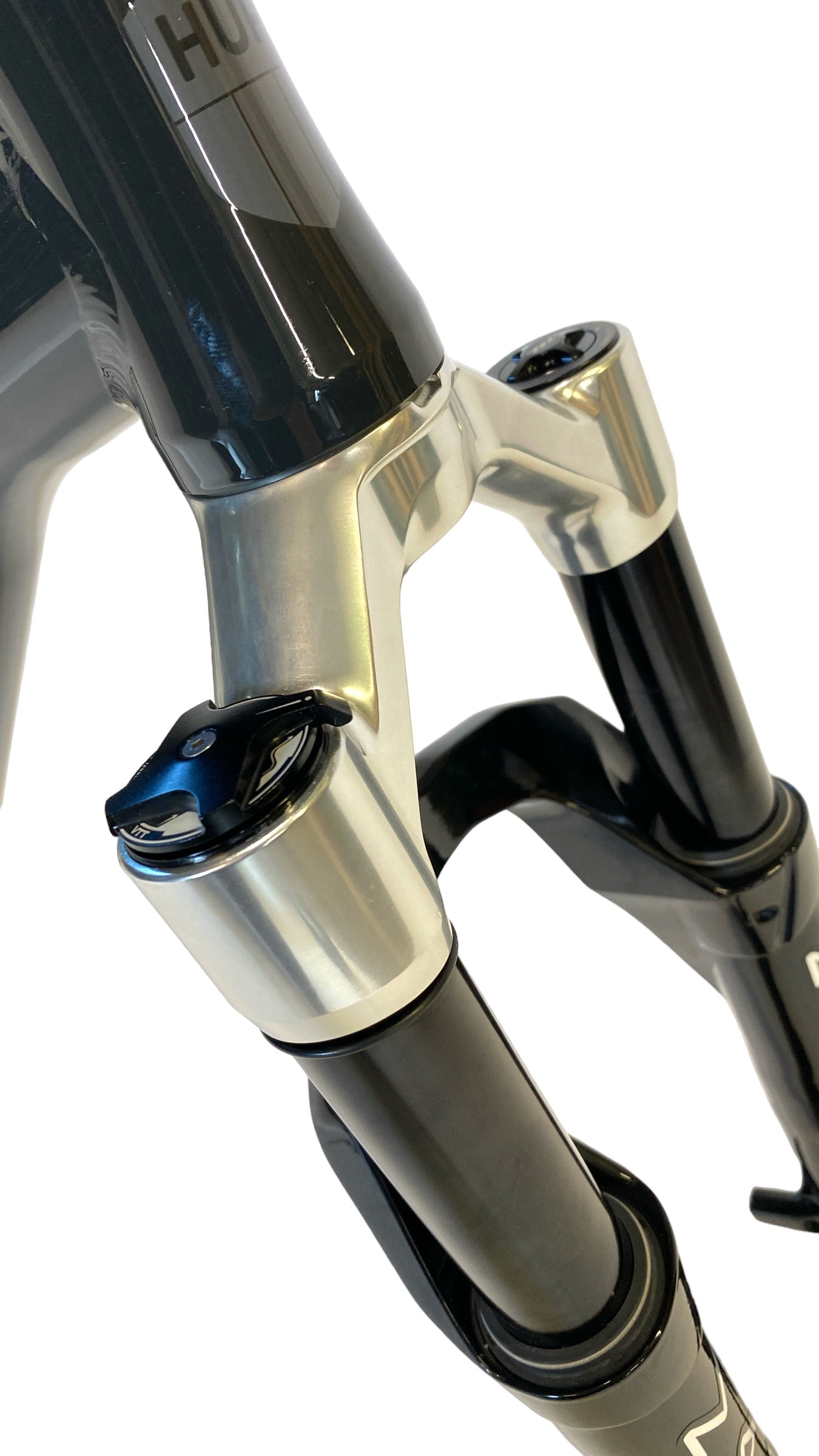

Fork Size: 100mm or 120mm max
Seatpost Diameter: 31.6mm

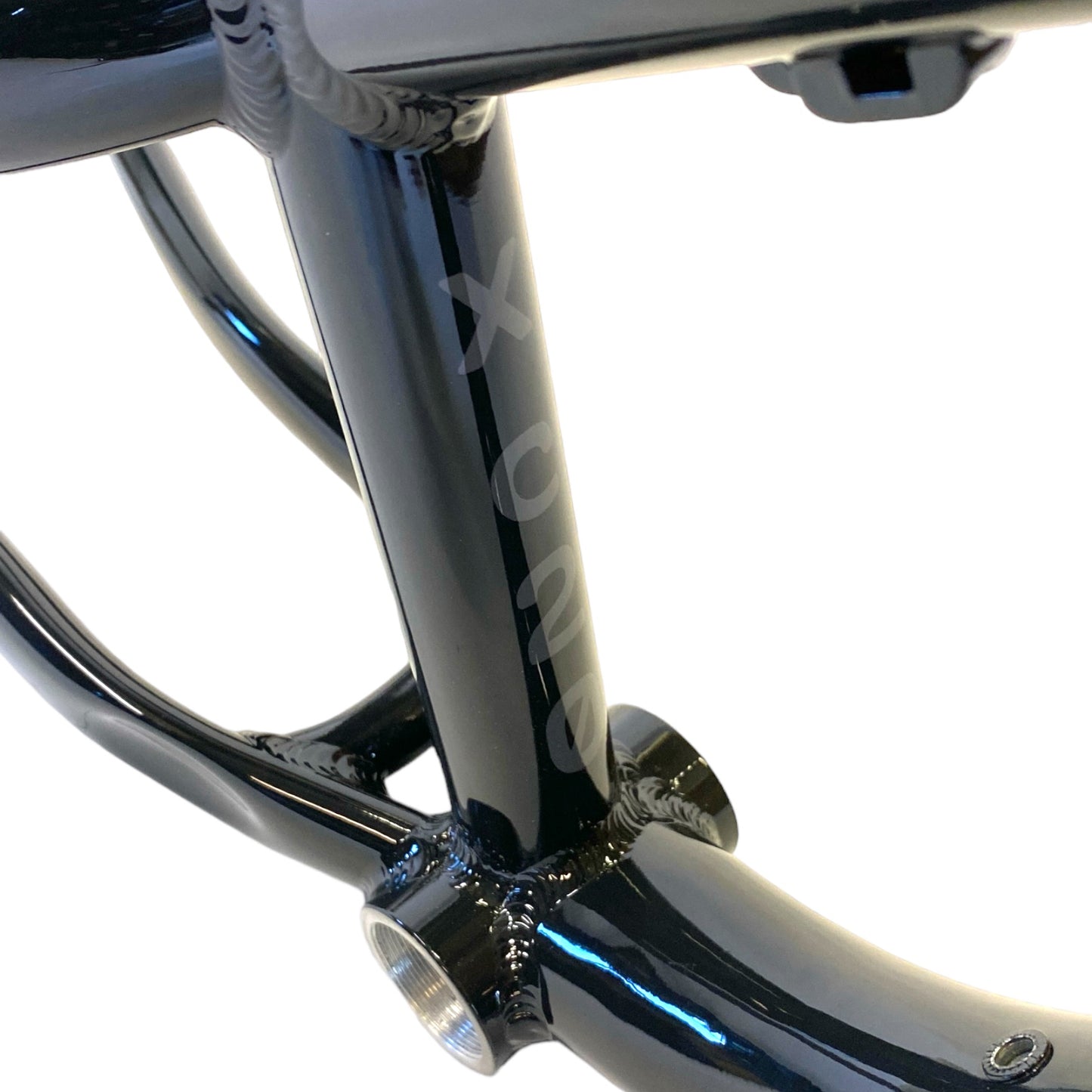

Bottom Bracket: 73mm BSA English threaded
BB Axle length (HUP cranks): 115mm SQT
Rear Axle OLD: 142mm Shimano 12mm thru-axle, 47mm chainline
Tyre Clearance: 2.4" on 406mm wheels

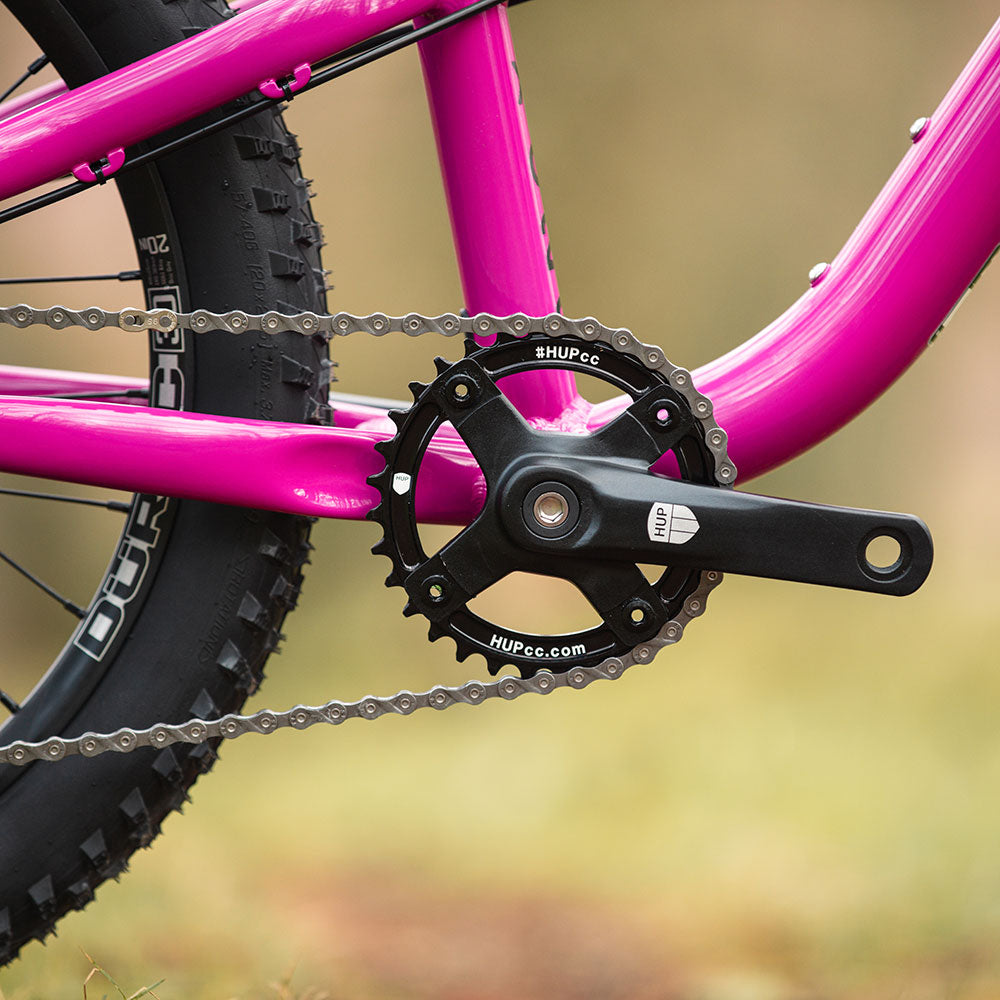

Maximum Chainring: 30T on HUP cranks (recommend minimum of 10-speed chain & max 38T cassette)
Cabling: external

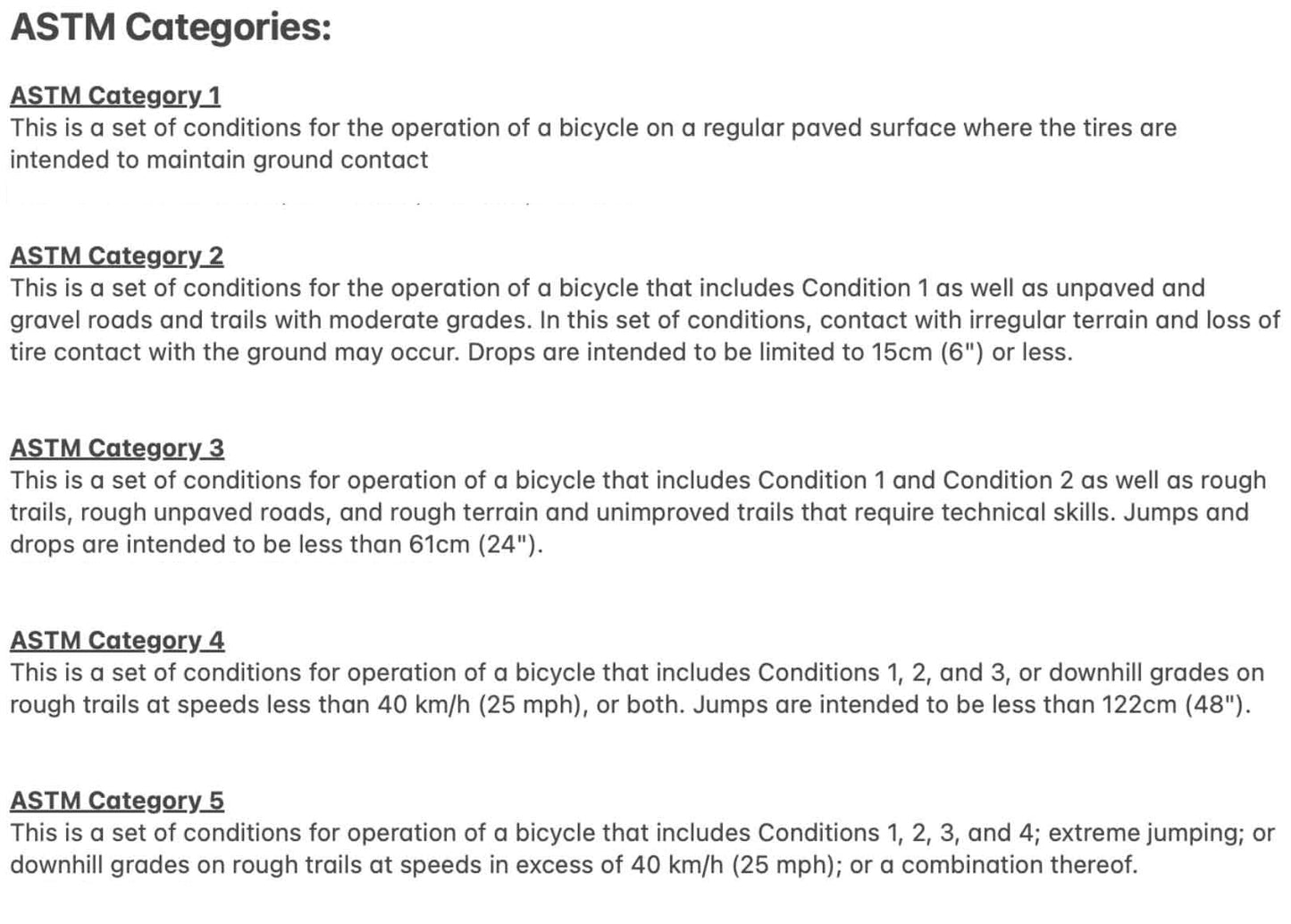

Max Weight: 50kg and ASTM Category 3 usage (not for Dirt Jump, Enduro or Downhill)

Age Range: 4-years old and up
