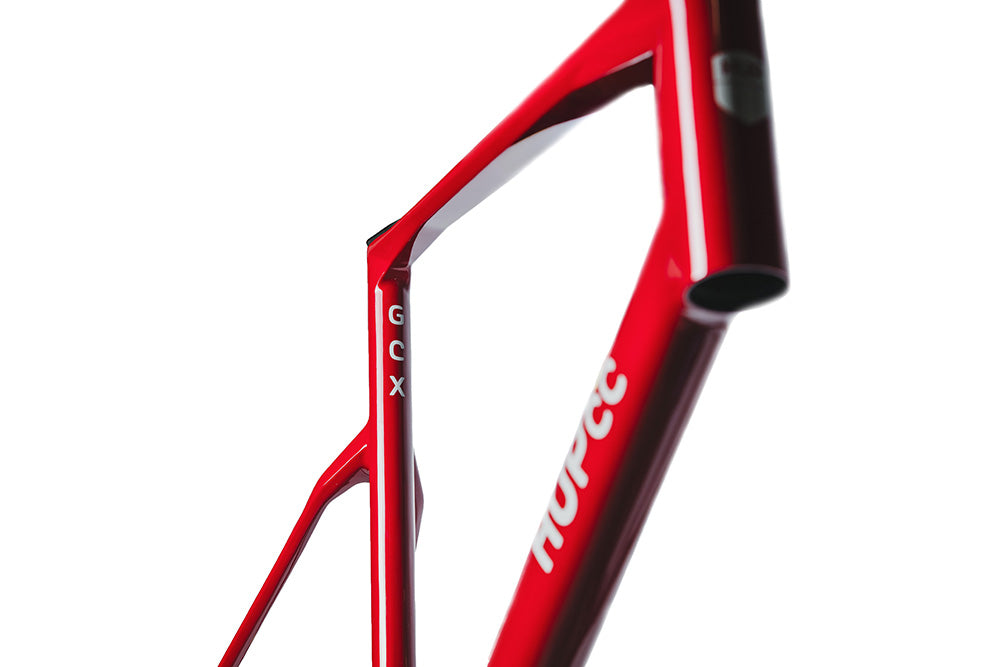

The new HUP GCX is our new frameset perfect for gravel racing, adventure bike packing, cyclocross or a big-tyre allroad bike. We genuinely believe, this is all the bike you will ever need. A versatile, lightweight carbon frameset on the latest geometry and standards for maximum compatability and future-proofing...
- Gravel race, adventure bikepacking, cyclocross or allroad cycling

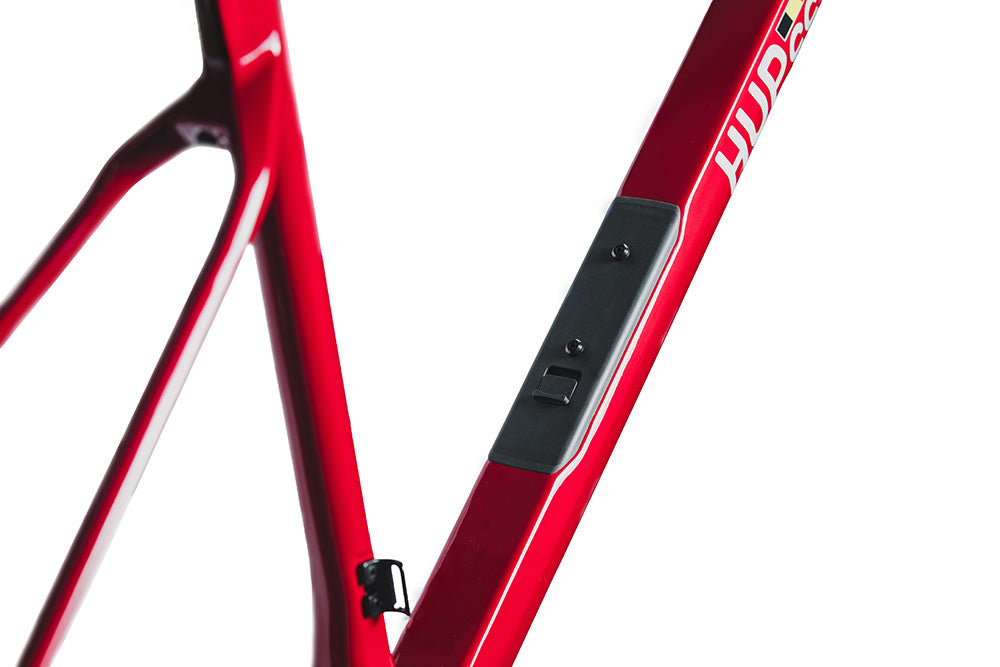

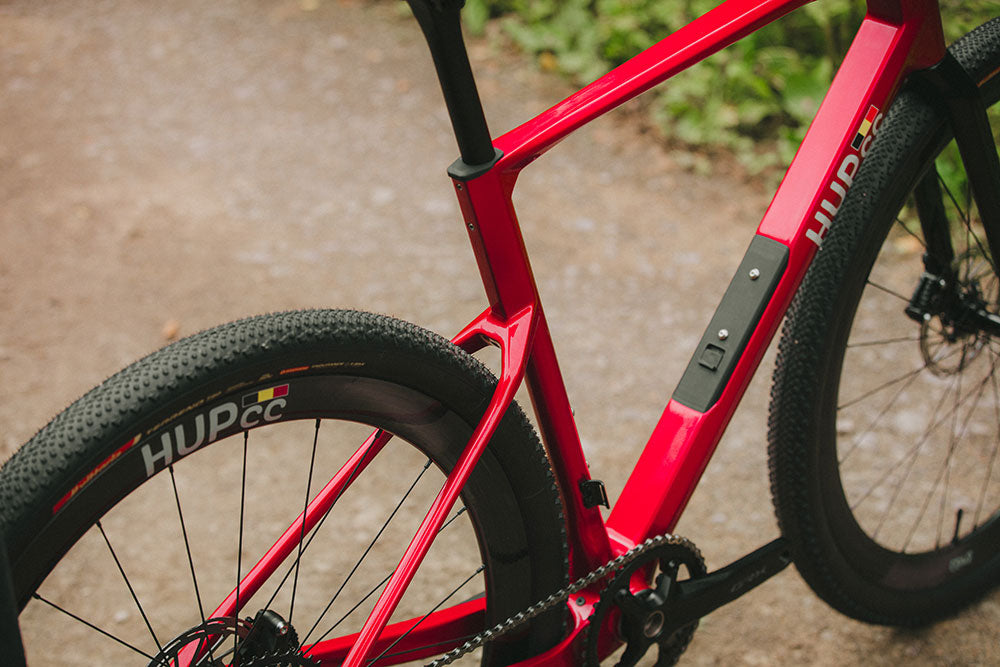

- Frame storage plus luggage mounts on top-tube, downtube, seat tube & forks
- Big 50mm tyres on 700c for lower pressures and increased comfort
- Latest standards: T47 BB and UDH mech hanger so you can fit any groupset
- Full internal cabling for zero fuss bikepacking and a clean, aero profile

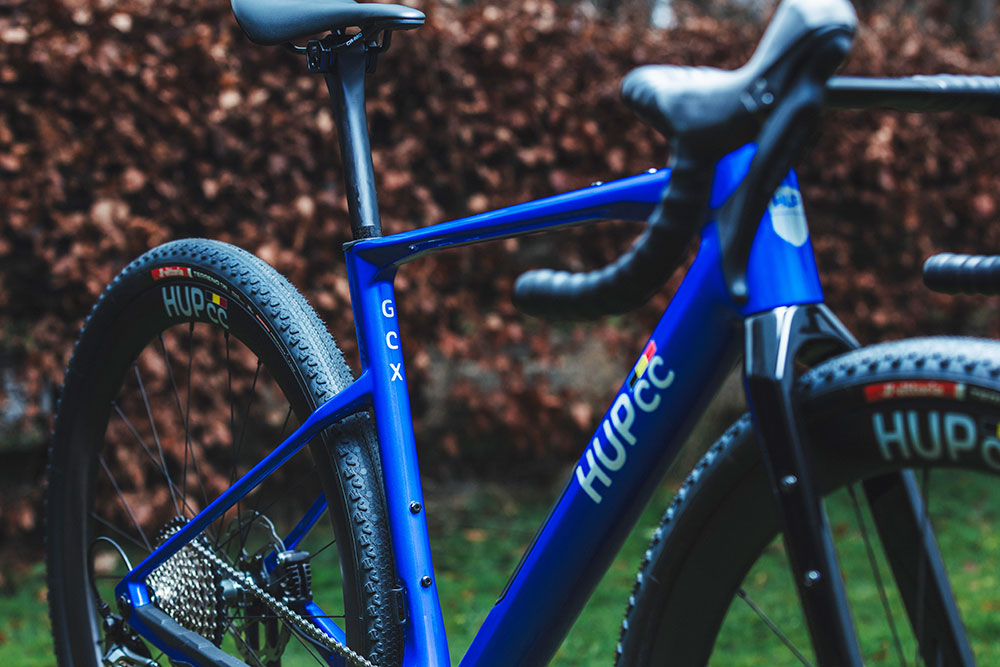

- Option for aero cockpits, internal cable stems or traditional stems for perfect bikefit

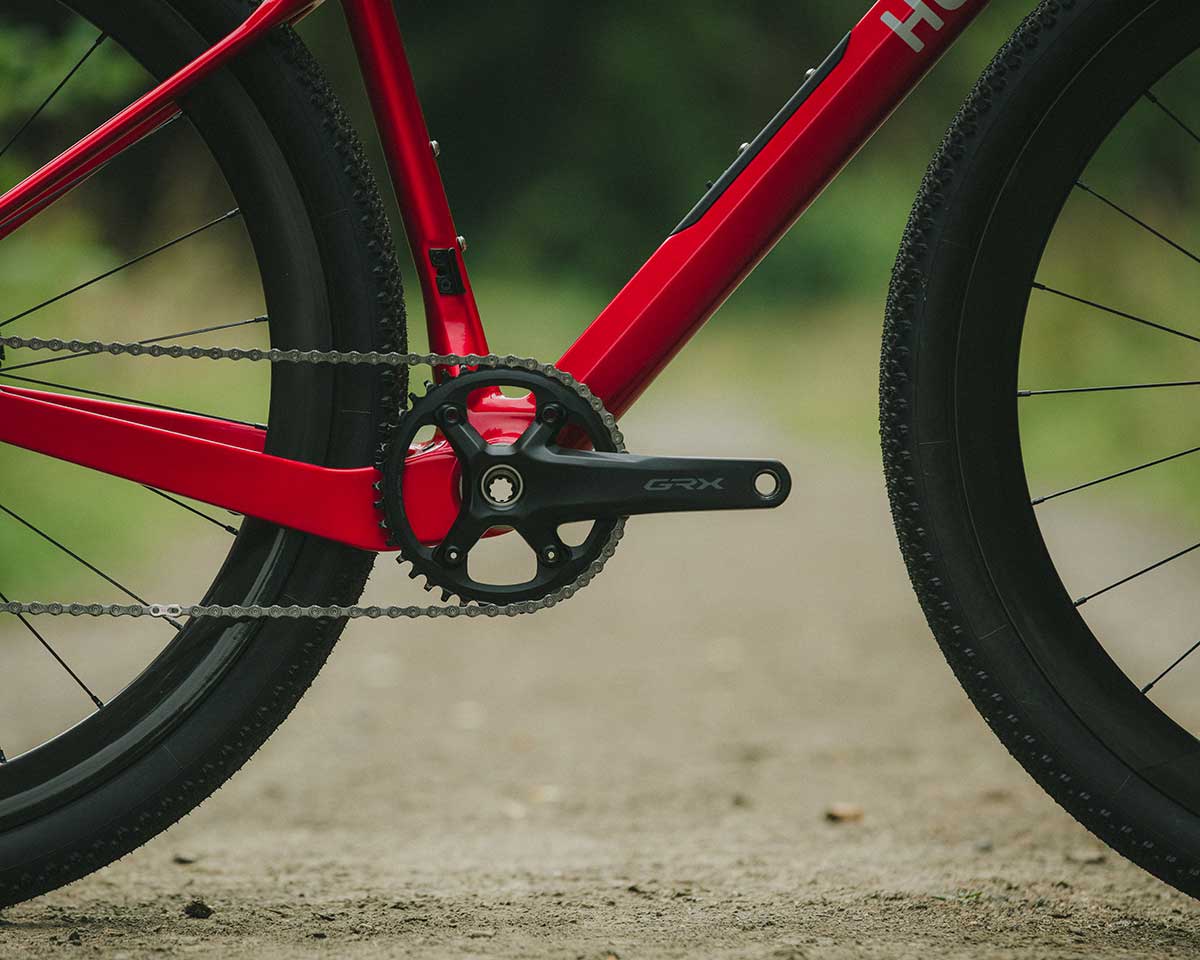

Using the latest (fully internal) cabling design, running full-length outer cables - ensures race reliability and reduced Winter maintenance. You can also fit a dropper post if desired. Bikes can be built using a single or double chainring chainset, including SRAM's very latest T-type directly mounted groupsets (even a 'Mullet' MTB groupset for a huge 10-52t cassette) thanks to it's UDH dropout.
Alongside our new frameset, we've developed a range of components specifically for use with the HUP GCX, including; aero cockpits, internal cable stems, carbon handlebars, T47 bottom brackets and a huge range for chainrings, so you can stay small or go big with your gearing on our HUP 2-piece cranksets.
Almost as big a project as the HUP GCX, is the range of wheels to make them fly, because no other component plays a bigger role in creating the best bike! Based on our new HUP CNC hubs, we've developed 6 new wheelsets in both Aluminium and Carbon, all lightweight (from just 1190g) and with inner widths of 23.5mm, 25mm or the huge 29mm - you can fit the tyres to suit your terrain. All hand-built in Scotland and UCI approved, prices start at just £399 and they completely change the game.
Lastly, we have a comprehensive range of spares to support your adventures, like bearings, hangers and every conceivable nut & bolt, including a dedicated chainstay protector - formed to fit perfectly and protect your frame on that fast, off-road terrain at high speed. Because if you want to go fast, you will go fast...

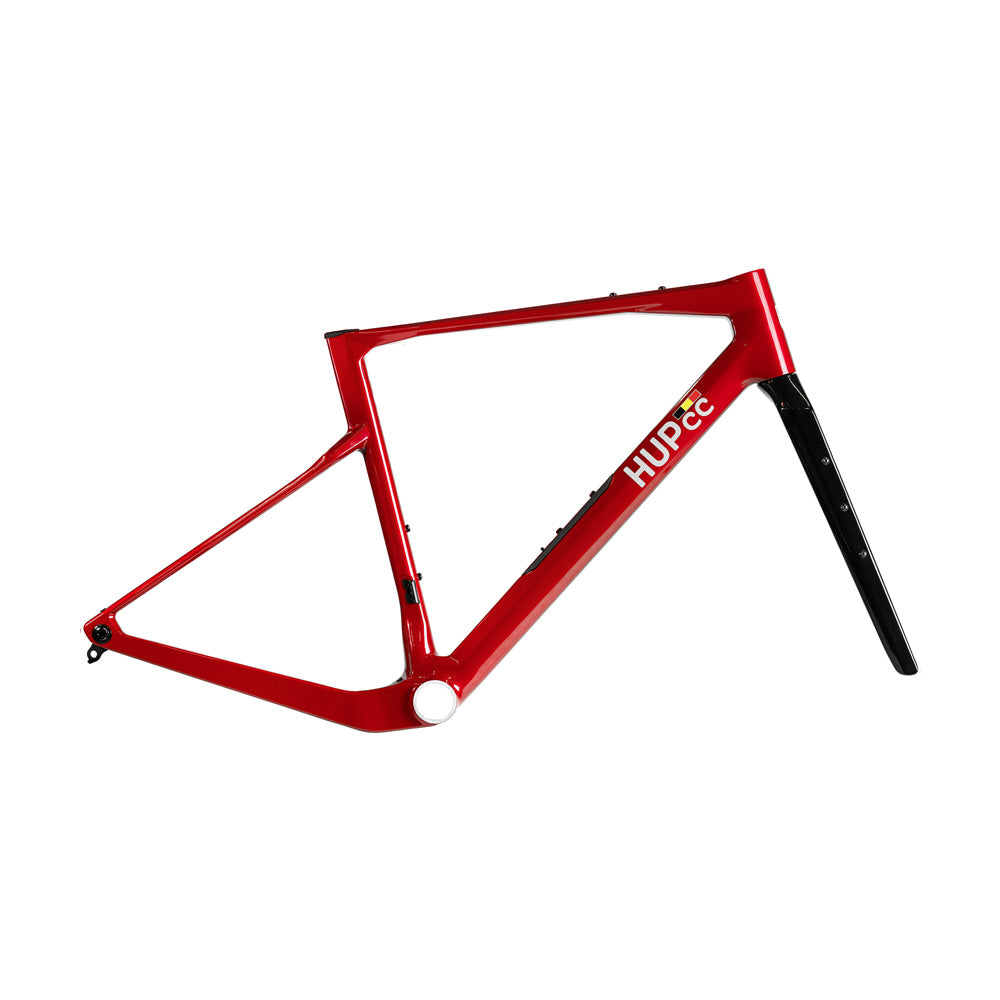

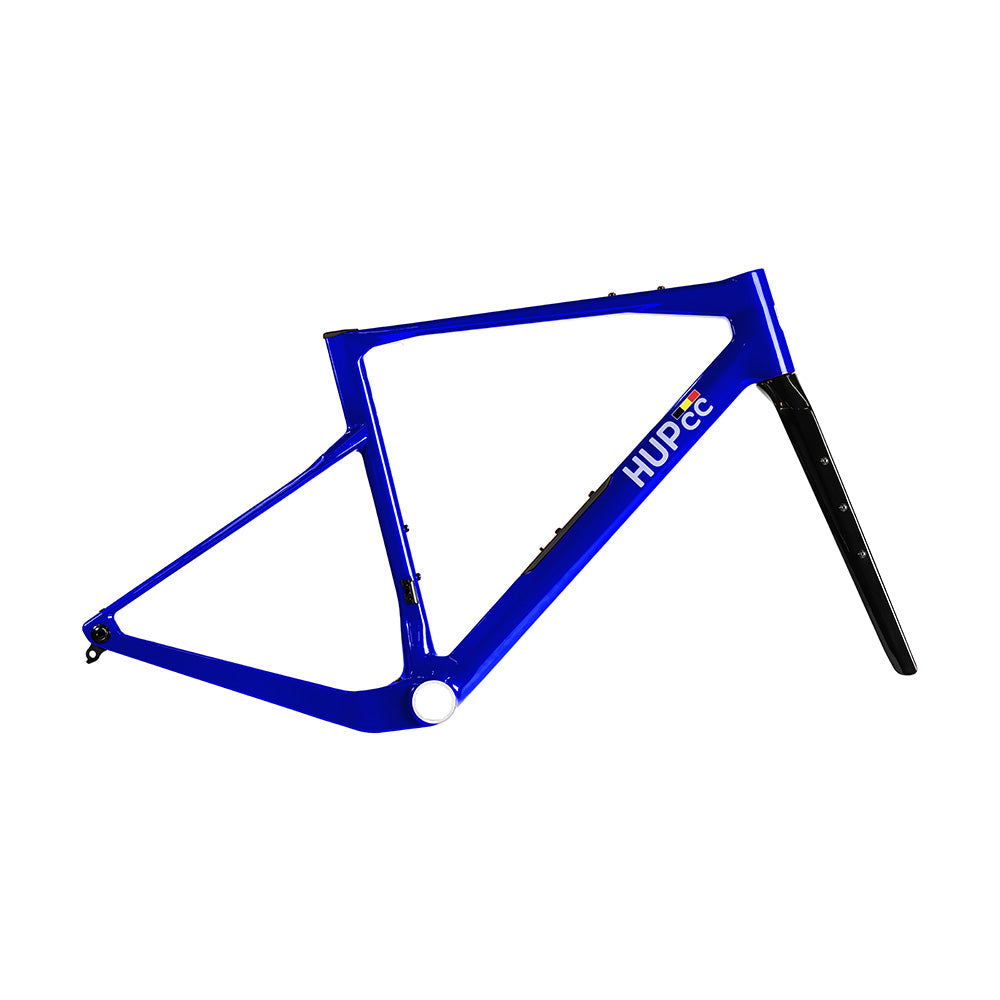

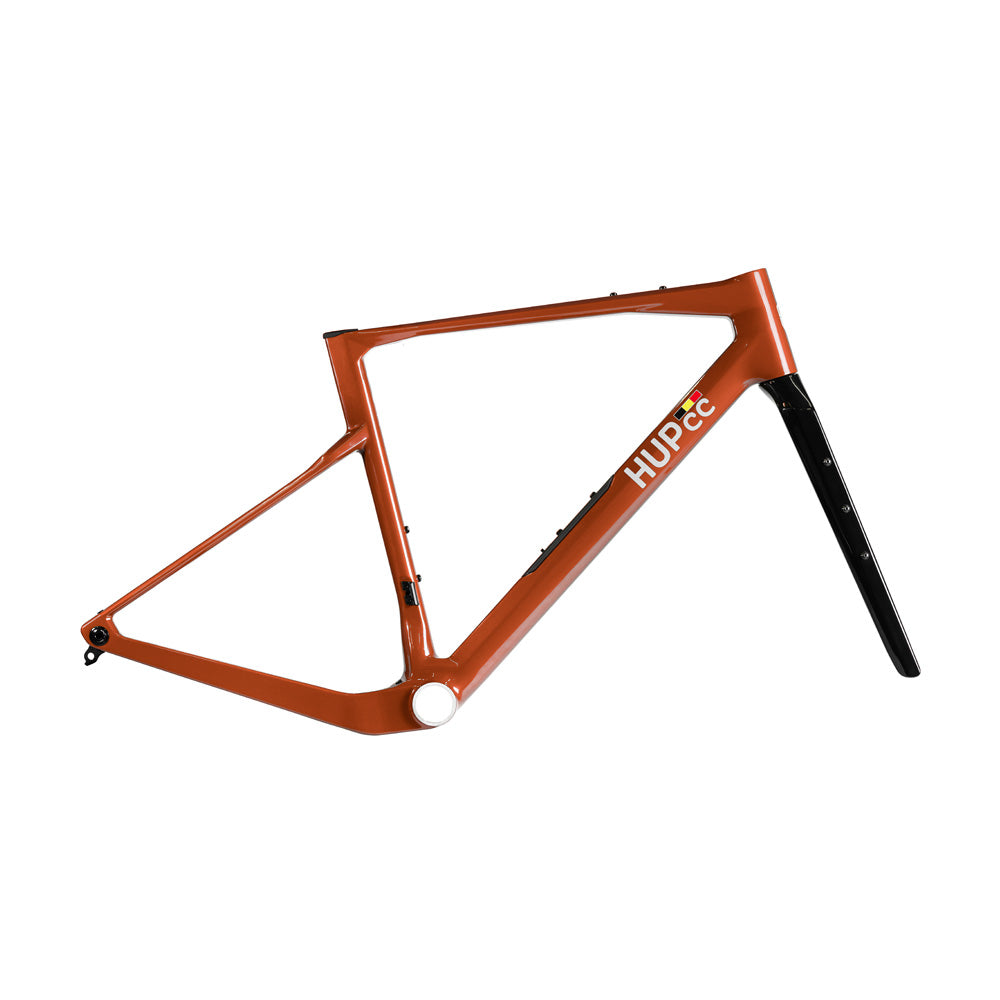

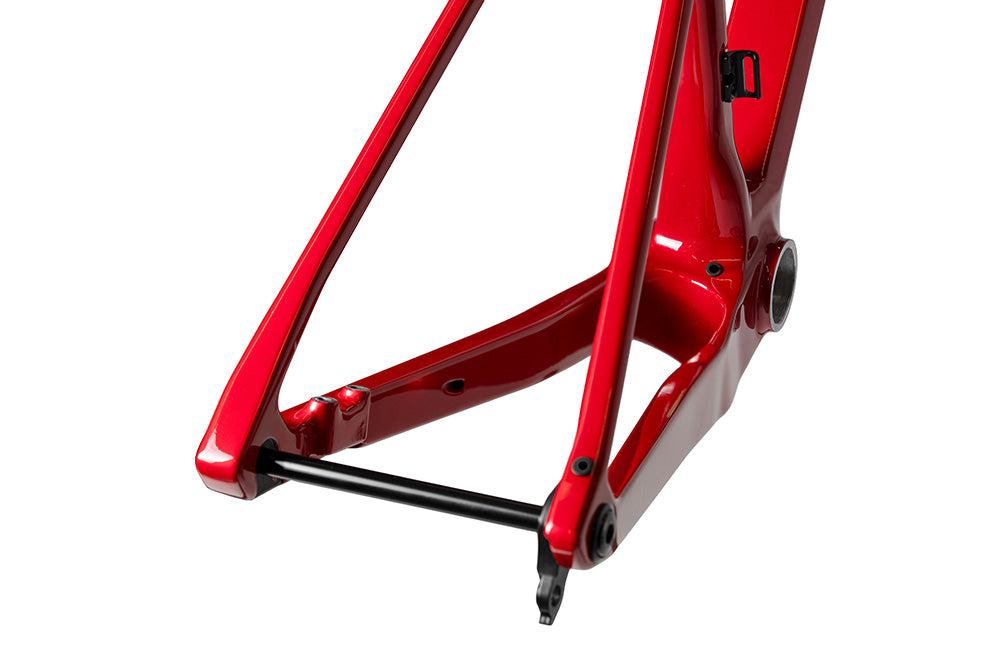

HUP GCX frames start at 46cm for riders approx 148cm up to 56cm for riders approx 6ft 2" and are available in 3 stunning paint finishes: Electric Blue, Highland Bronze or Cherry Red. Each HUP GCX frameset includes: frame, fork, headset, UDH mech hanger, storage cover, thru-axles & cable fittings...
Frame Material: Carbon-fibre with UDH Hanger
Fork Material: Carbon fibre (including steerer) with 1 1/8" tapered steerer
Frame Weight*: from
Fork Weight*:
Colour: Electric Blue, Highland Bronze or Cherry Red - with black fork
Headset:

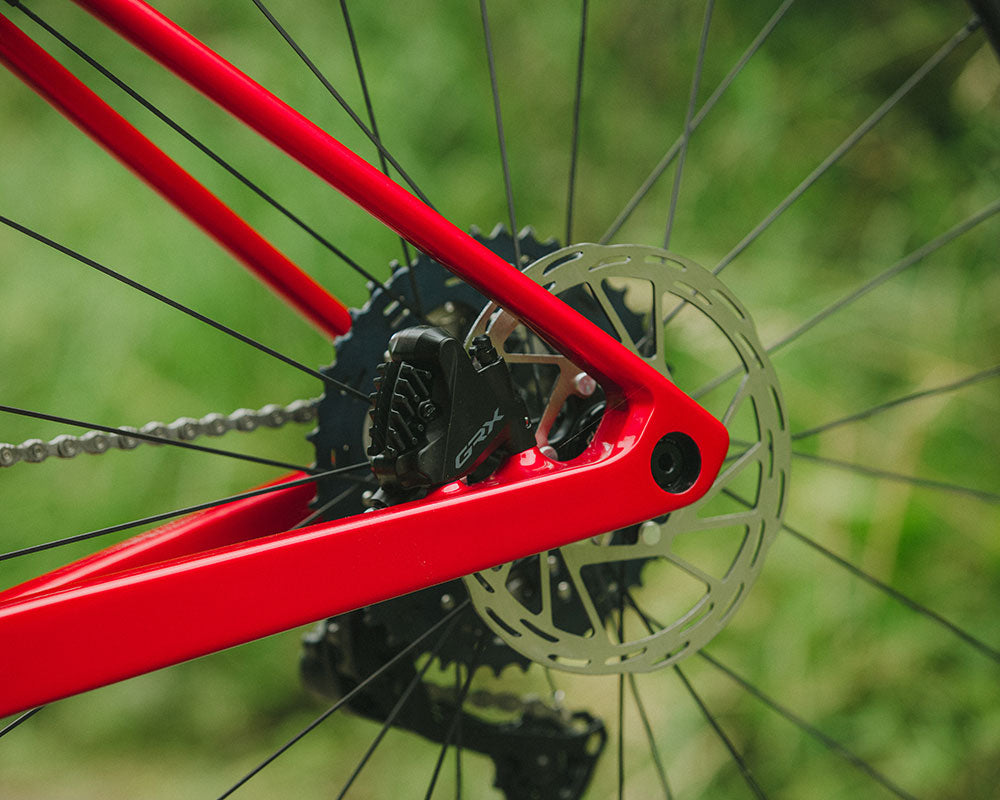

Brake Type: Flat mount disc 160/180 rear and 160/180 front rotors
Seatpost Diameter: 27.2mm (dropper post compatible on 1x chainsets)
Bottom Bracket: T47 threaded
Front Axle OLD: 100mm Shimano thru-axle (12mm x P1.0)
Rear Axle OLD: 142mm Shimano thru-axle (12mm x P1.0)

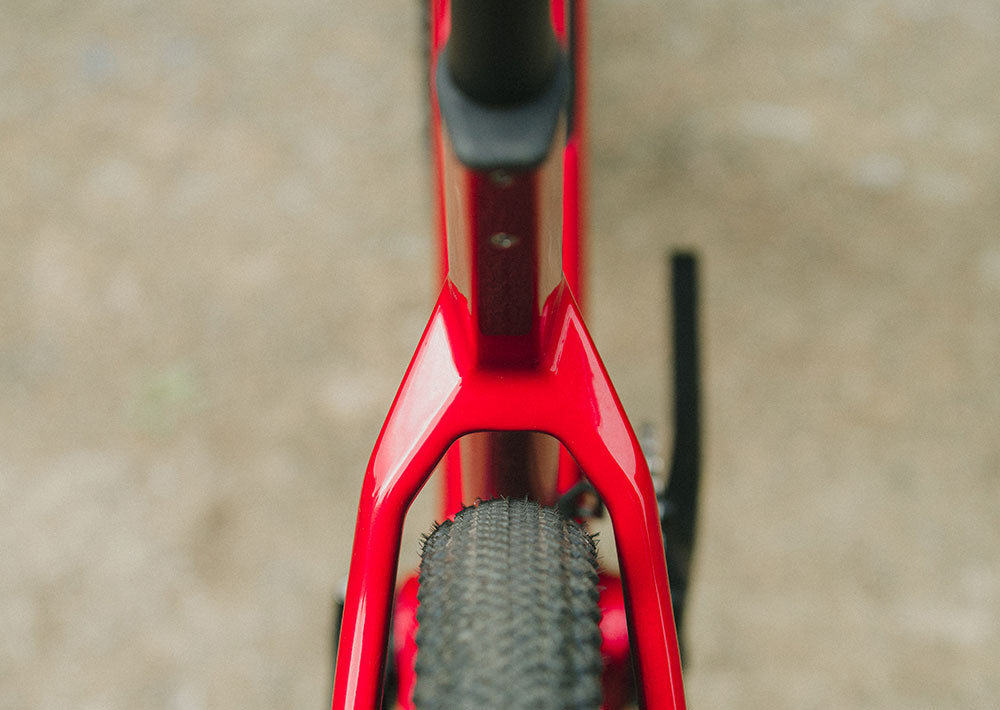

Tyre Clearance: up to 50c (700c) based on our HUP CD42 (60mm between stays)
Maximum Gearing: 50T (1x) or 50/34T (depending on crankset/chainline)

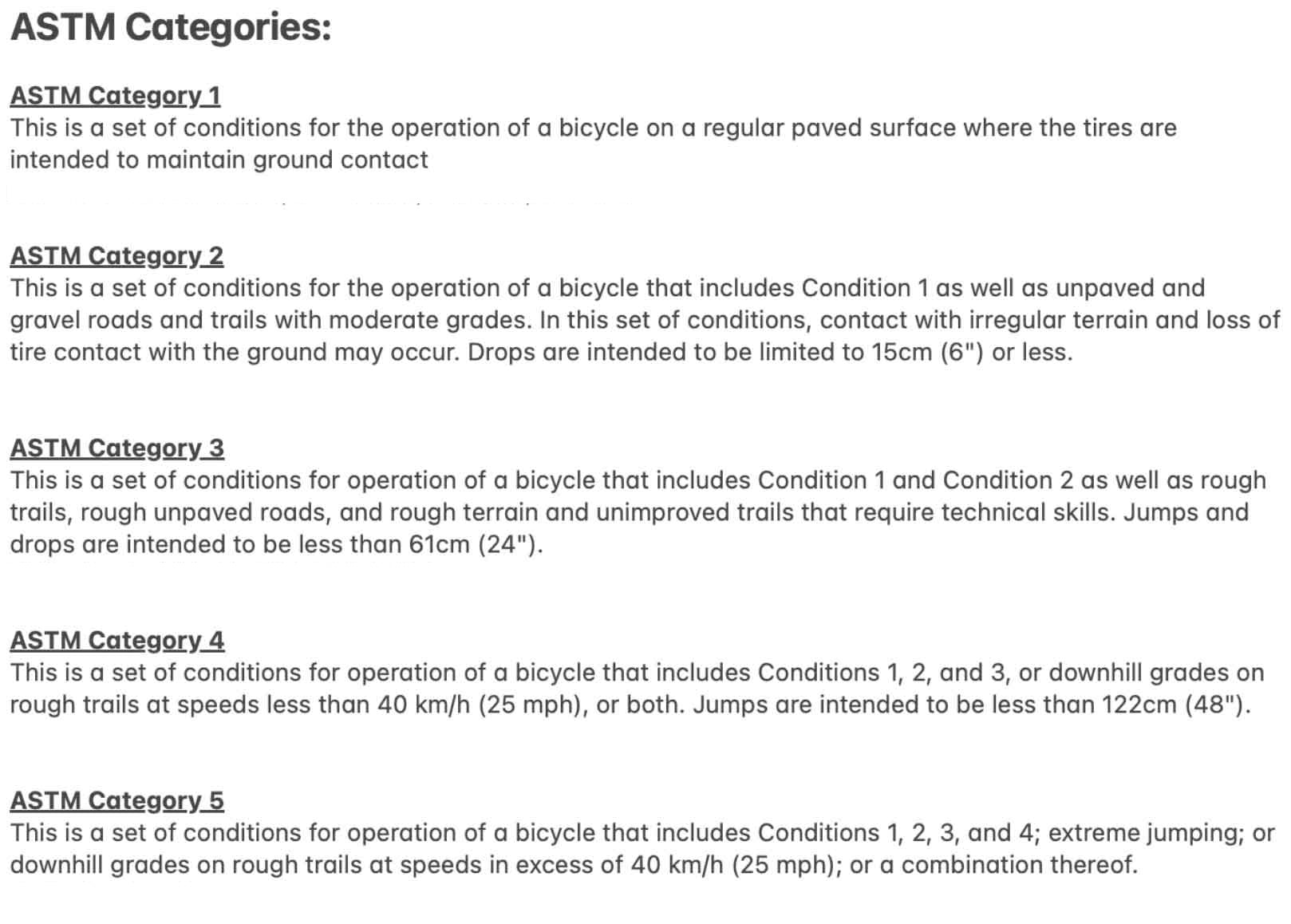

Max Weight: 110kg and ASTM category 2 useage
Cabling: fully internal
Recommended sizes: See Sizing Guide
*subject to manufacturing tolerance +/- 3%. More installation details HERE
