The new HUP GCX is our new frameset perfect for gravel racing, adventure bike packing, cyclocross or a big-tyre allroad bike. We genuinely believe, this is all the bike you will ever need. A versatile, lightweight carbon frameset on the latest geometry and standards for maximum compatability and future-proofing...

Gravel race, adventure bikepacking, cyclocross or allroad cycling
Frame storage plus luggage mounts on top-tube, downtube, seat tube & forks
Big 50mm tyres on 700c for lower pressures and increased comfort
Latest standards: T47 BB and UDH mech hanger for a wide range of groupsets
Full internal cabling for zero fuss bikepacking and a clean, aero profile
Option for internal cable stems or traditional stems for perfect bikefit

Using the latest (fully internal) cabling design, running full-length outer cables - ensures race reliability and reduced Winter maintenance. You can also fit a dropper post if desired. Bikes can be built using a single or double chainring chainset, including SRAM's very latest T-type directly mounted gravel groupsets, thanks to it's UDH dropout.

Alongside our new frameset, we've developed a range of components specifically for use with the HUP GCX, including; internal cable stems, carbon handlebars, T47 bottom brackets and a huge range for chainrings, so you can stay small or go big with your gearing on our HUP 2-piece cranksets.

Almost as big a project as the HUP GCX, is the range of wheels to make them fly, because no other component plays a bigger role in creating the best bike! Based on our new HUP CNC hubs, we've developed 6 new wheelsets in both Aluminium and Carbon, all lightweight (from just 1190g) and with inner widths of 23mm, 26mm or the huge 29mm - you can fit the tyres to suit your terrain. All hand-built in Scotland and UCI approved, they completely change the game.

Lastly, we have a comprehensive range of spares to support your adventures, like bearings, hangers and every conceivable nut & bolt, including a dedicated chainstay protector - formed to fit perfectly and protect your frame on that fast, off-road terrain at high speed. Because if you want to go fast, you will go fast...

Token Box A-box internal cabling on seperate stem/bars

Token Box A-box internal cabling on 1-piece cockpit handlebars

Token Box S-box semi-internal cabling on traditional stem/bars

HUP GCX frames start at 46cm for riders approx 148cm up to 56cm for riders approx 6ft 2" and are available in 3 stunning paint finishes: Electric Blue, Highland Bronze or Cherry Red. Each HUP GCX frameset includes: frame, fork, Token headset**, UDH mech hanger, storage cover, thru-axles & cable fittings...

Frame Material: Japanese Toray T700 carbon-fibre with UDH Hanger and 52mm headtube
Fork Material: Carbon fibre (including steerer) with 1 1/8" tapered steerer
Frame Weight*: from 1140g (46cm) to 1290g (56cm)
Fork Weight*: 420g (max luggage 3kg per leg)
Colour: Electric Blue, Highland Bronze or Cherry Red - with black fork
Headset: Token TK155P (A-box) SHIS code: IS52/28.6 | IS52/40 with premium SUJ2 bearings (semi internal S-box also available to use traditional stems)
Brake Type: Flat mount disc 160/180 rear and 160/180 front rotors
Seatpost Diameter: 27.2mm (dropper post compatible on 1x chainsets)
Bottom Bracket: T47 threaded
Front Axle OLD: 100mm Shimano thru-axle (12mm x P1.0)
Rear Axle OLD: 142mm Shimano thru-axle (12mm x P1.0)
Tyre Clearance: on 700c up to 50mm on 1x (or 48mm on 2x)
Maximum Gearing: 48T (1x) or 50/34T (depending on crankset/chainline)
Max Weight: 115kg total system weight and ASTM category 2 useage
Cabling: fully internal
Recommended sizes: See Sizing Guide

*subject to manufacturing tolerance +/- 3%. More installation details HERE

** confirm your required Token headset (A-box or S-box) at time of ordering

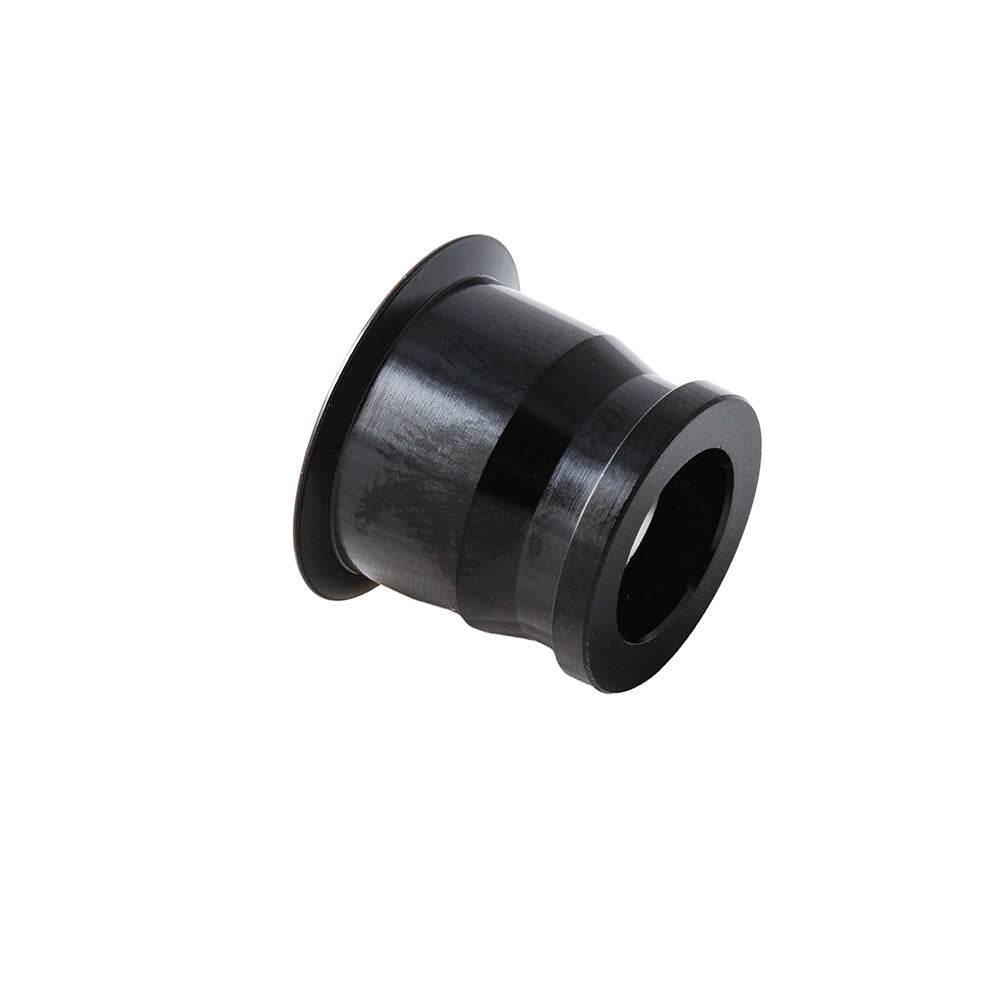

Endcap for HUP RCG24/28 & XTA28 hubs for Microspline freehubs
