HUP evo cyclo-cross frameset (non UCI)

The HUP evo is a game-changing Cyclo-cross disc frameset, using unique to fit all riders correctly. Lightweight, low-standover and low stack, this unique frame allows riders of all ages to shoulder easily with it's curved, flat bottom top-tube - Koksijde ready!

HUP evo CX frames start at 37cm for riders approx 125cm+ up to 58cm for riders 6ft+

This clever frame design can deal with serious mud, thanks to it's class-leading 55mm clearance, which also allows the fitting of 650b wheels/46c tyres. Flat Mount disc brakes produce all-weather braking reliability. Stiff, lightweight thru-axles (just 80g per pair) and a long trail layout increase high-speed stability. A superlight monocoque carbon fork creates a very light front end, improving manoeuvrability.

With a triple-butted 7005 frame and full carbon fork, the #HUPevo is the lightest Aluminium frameset available, rivalling all but the most expensive T-1000 carbon frames. Often coming up lighter than most of the carbon competition (especially when built using our wheels) we regulary surprise seasoned racers with our low build weights.

Using the latest internal cable technology with easy fitting for novice mechanics thanks to a downtube 'letterbox'. Running full-length outer cables ensures race reliability and reduces Winter maintenance to a minimum.

Smaller HUP framesets (37cm - 48cm) have been specifically developed for children's long leg/short torso physiology with class-leading short top-tubes (just 48cm for the 37cm) and when built with HUP components, achieve unrivalled fit. It's the frame kids want to ride, at the price parents want to pay.

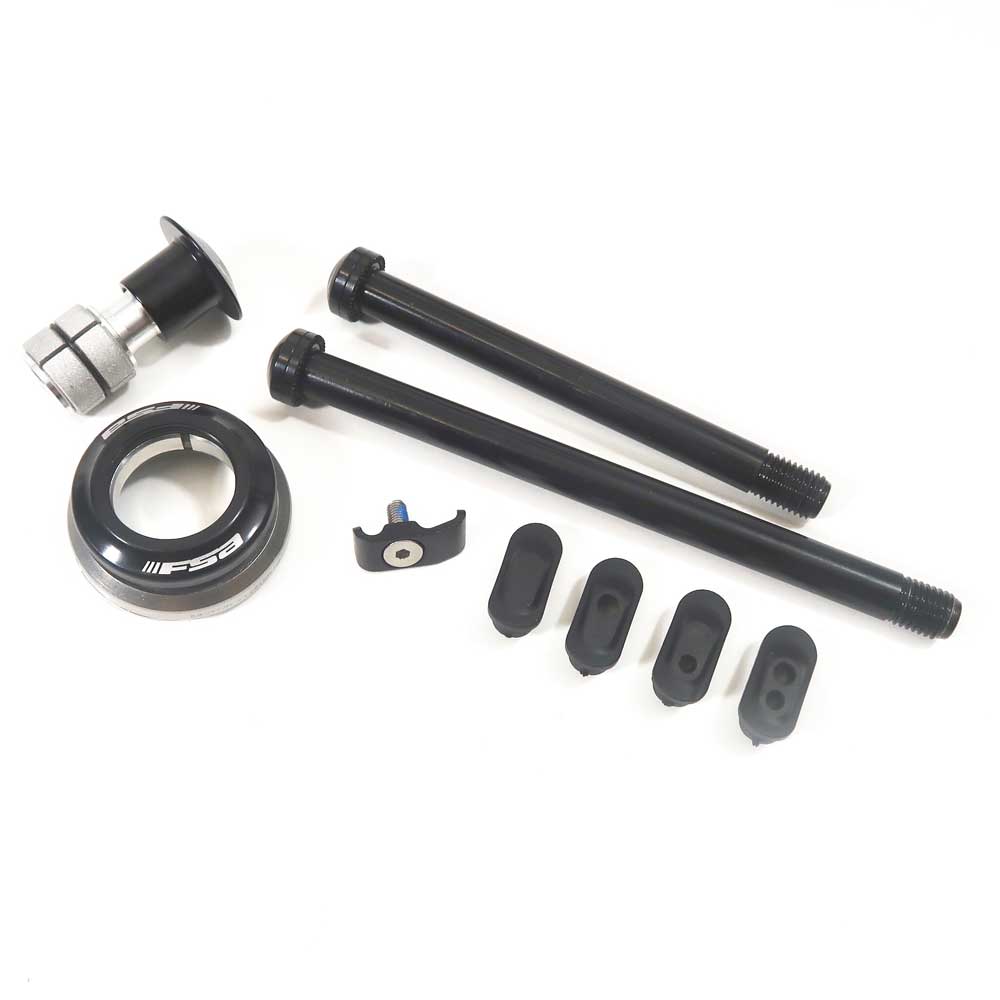

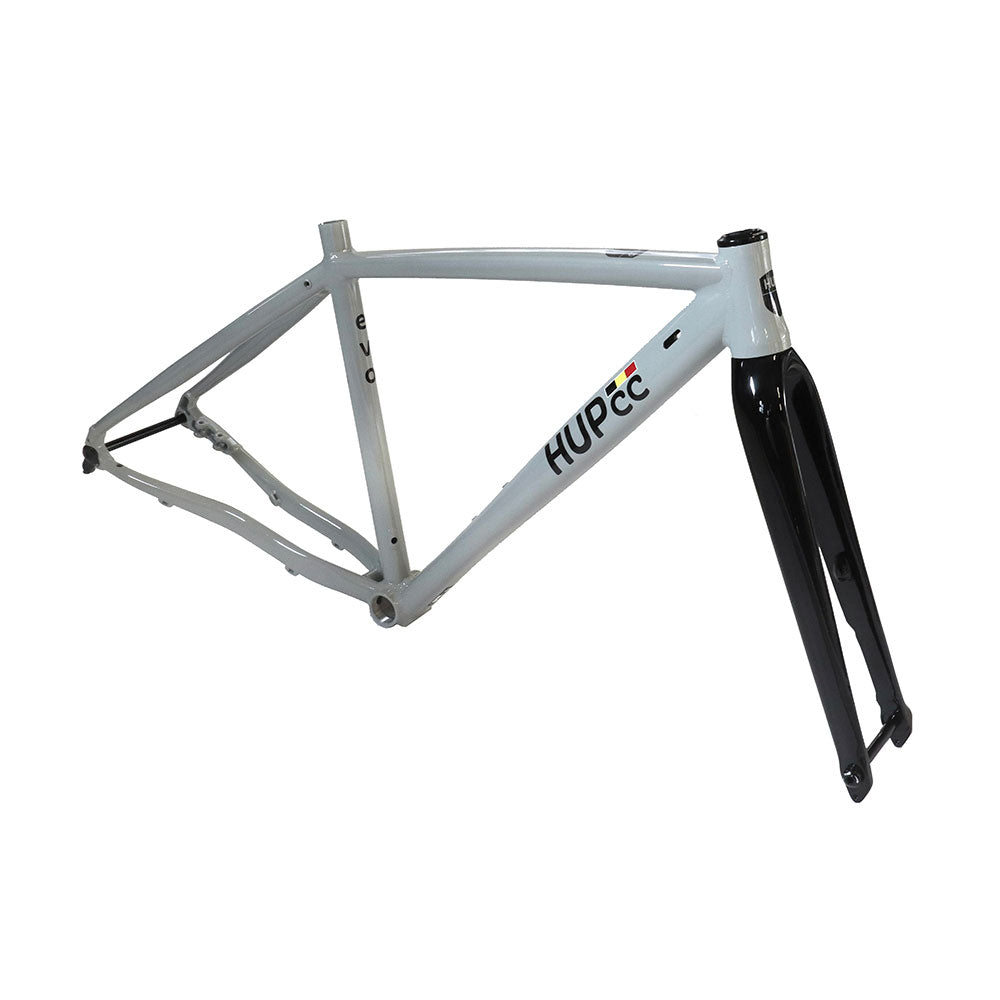

Included with this frameset: frame, fork, headset, mech hanger, thru-axles, BB cable guide & cable fittings...

Frame Material: Aluminium Alloy 7005 (triple-butted)
Fork Material: Carbon fibre with carbon steerer, 1 1/8" tapered steerer
Frame Weight*: from 1295g
Fork Weight*: 410g

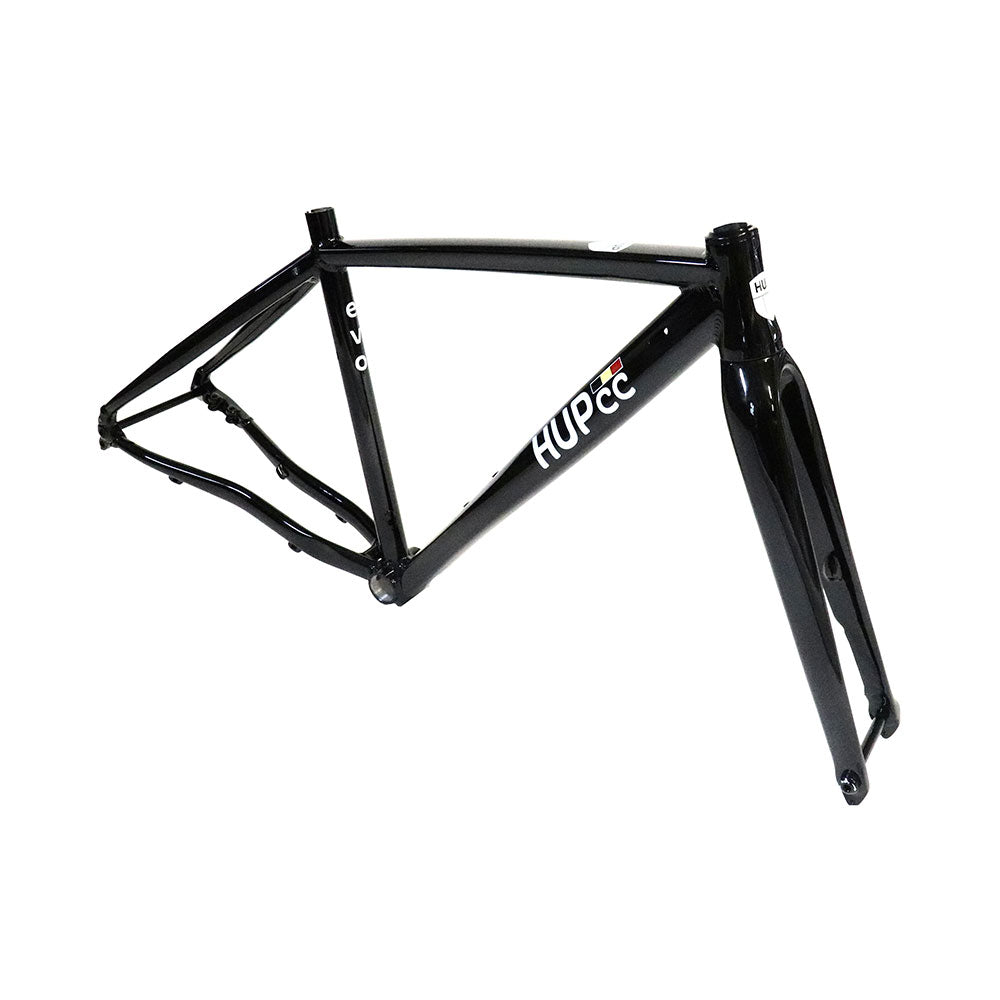

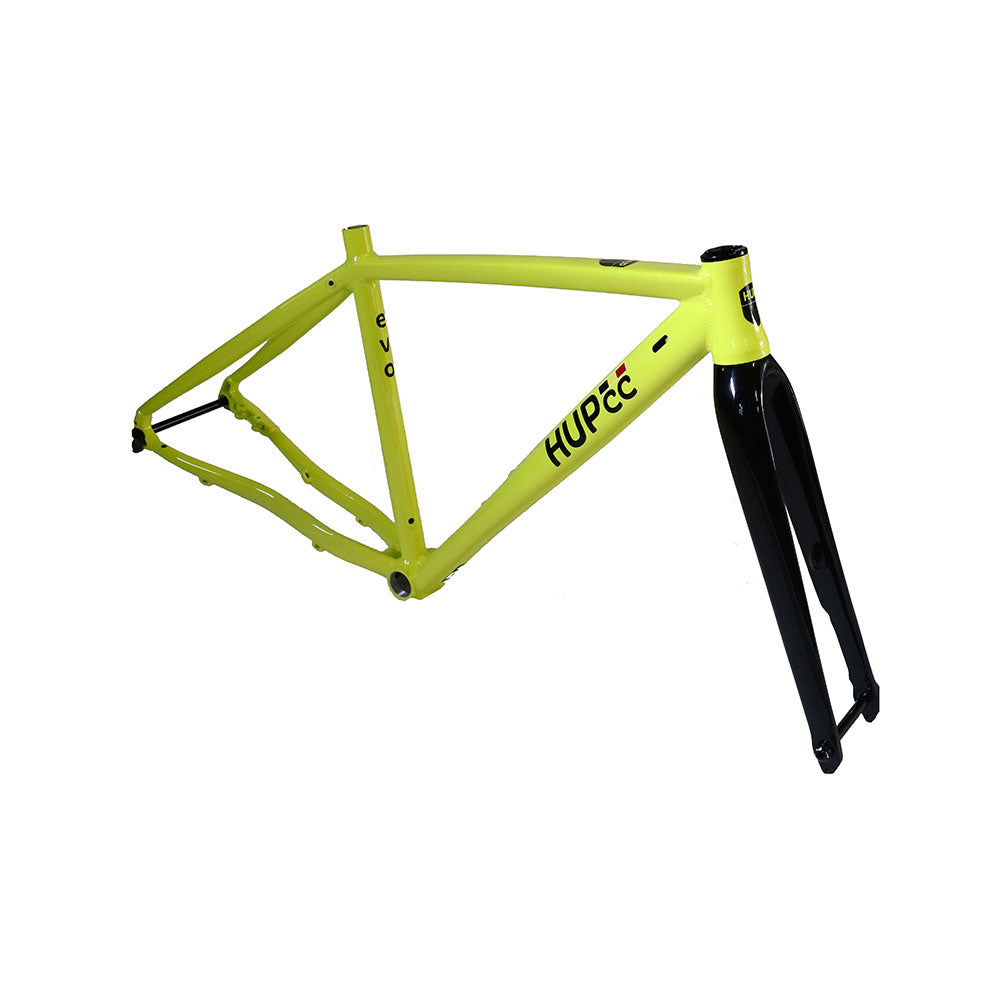

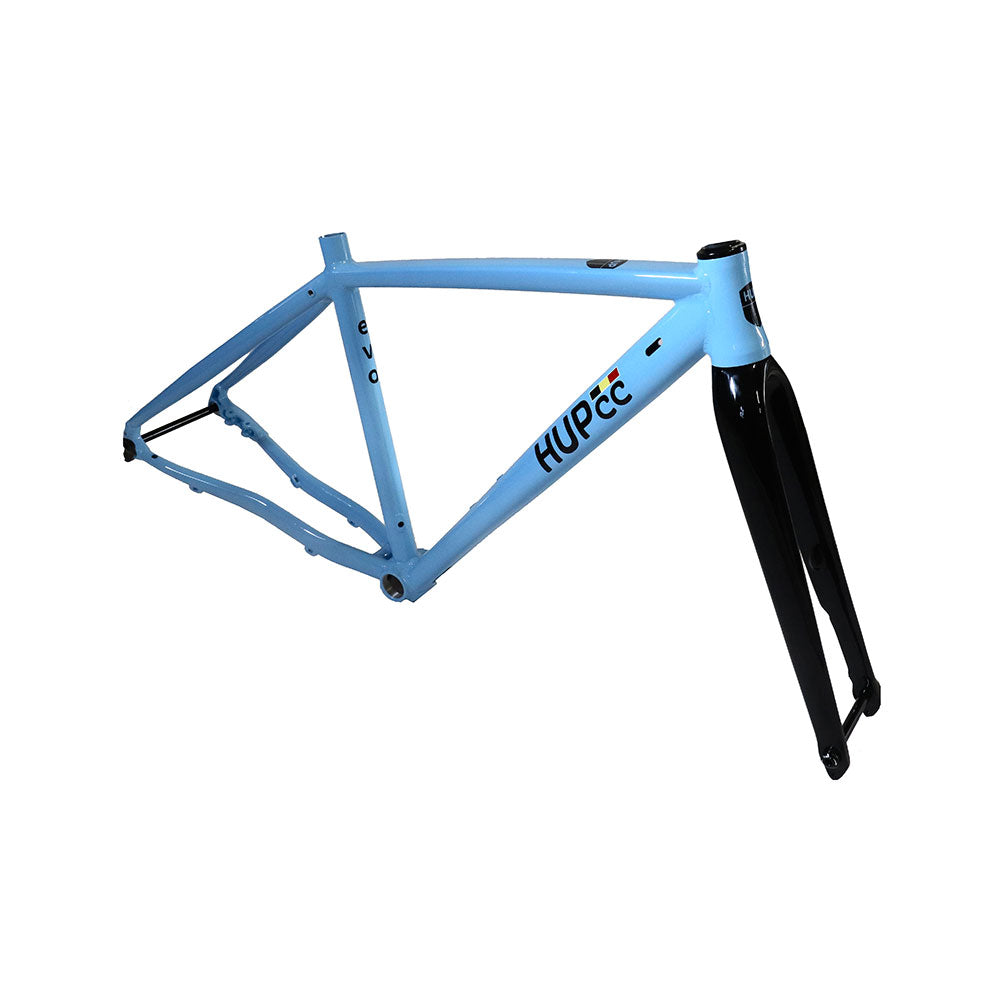

Colour: Stealth Black, Belgian Blue, Bright Yellow and Cool Grey - with black carbon finish fork
Headset: Lightweight FSA No.42 ACB sealed bearing
Brake Type: Flat mount disc 140/160 rear and 140/160 front rotors
Seatpost Diameter: 27.2mm
Bottom Bracket: 68mm English
Front Axle OLD: 100mm Shimano thru-axle
Rear Axle OLD: 142mm Shimano thru-axle
Tyre Clearance: 40c (700c) 46c (650b)
Maximum Gearing: 44T (1x) or 50/34T

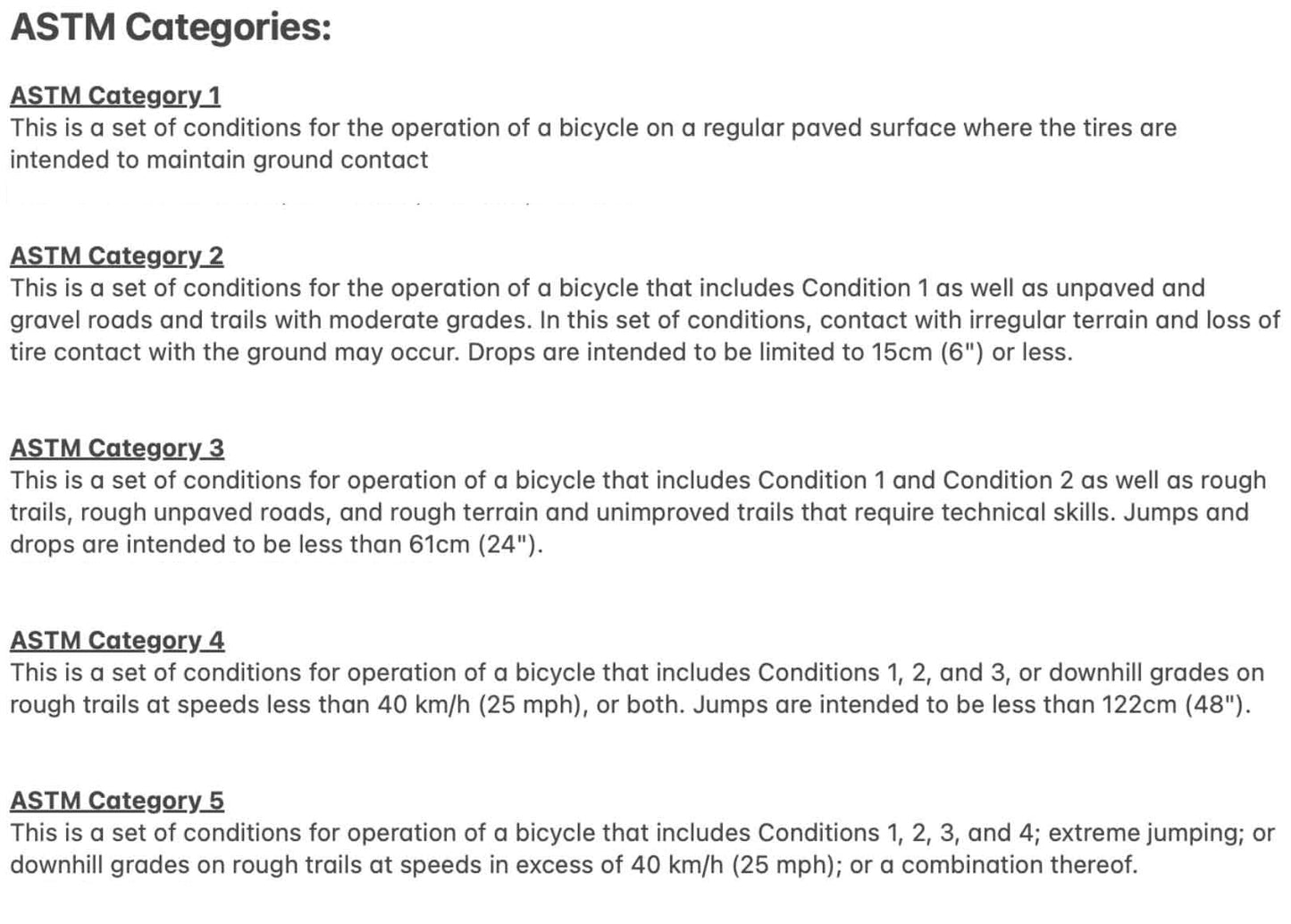

Max Weight: 100kg and ASTM category 2 useage
Cabling: internal downtube/top-tube
Recommended Sizes: See Sizing Guide
