HUP azure Track Frameset

HUP azure Track Frameset

Regular price £299.99 GBP
Regular price £500.00 GBP Sale price £299.99 GBP
Sale Sold out
Tax included.

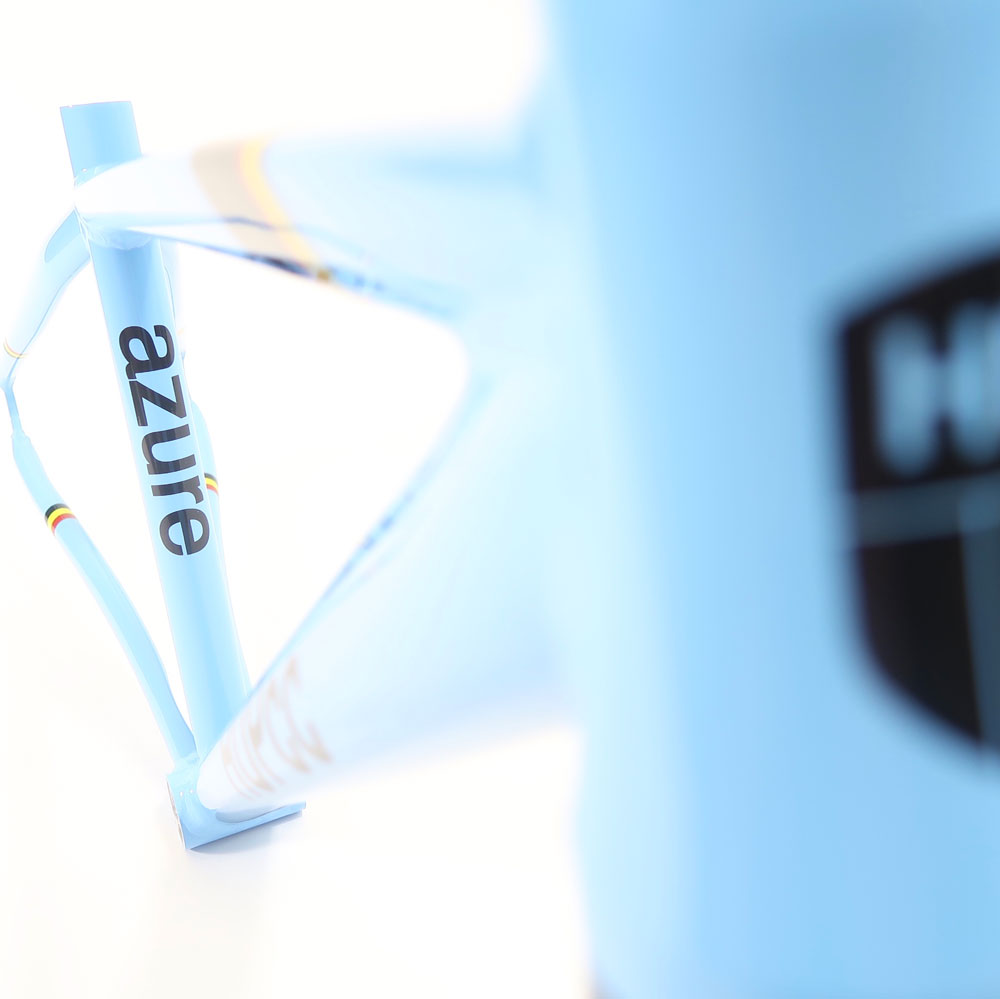

The new HUP azure is the lightest child-specific track frameset on the market, using unique XXS geometry to fit smaller riders correctly (making it perfect for beginners and first time track riders) based on full-sized 700c wheels. Lightweight, low-standover, low stack and very fast, its ready for the Ghent Velodrome!

With a lightweight triple-butted 7005 frame and carbon fork (when built with HUP cranks) for the first time younger riders benefit from correct length/q-factor crank arms to match the high cadence required in a lightening fast velodrome race. At last, a track bike frame that fits children properly.

HUP azure track frames start with the tiny 37cm for riders as small as 128cm tall. Performance benefits of younger riders on 700c wheels are well proven and the practical benefits of component sharing with their parents and siblings is a game-changer. No more odd sized 650c wheels!

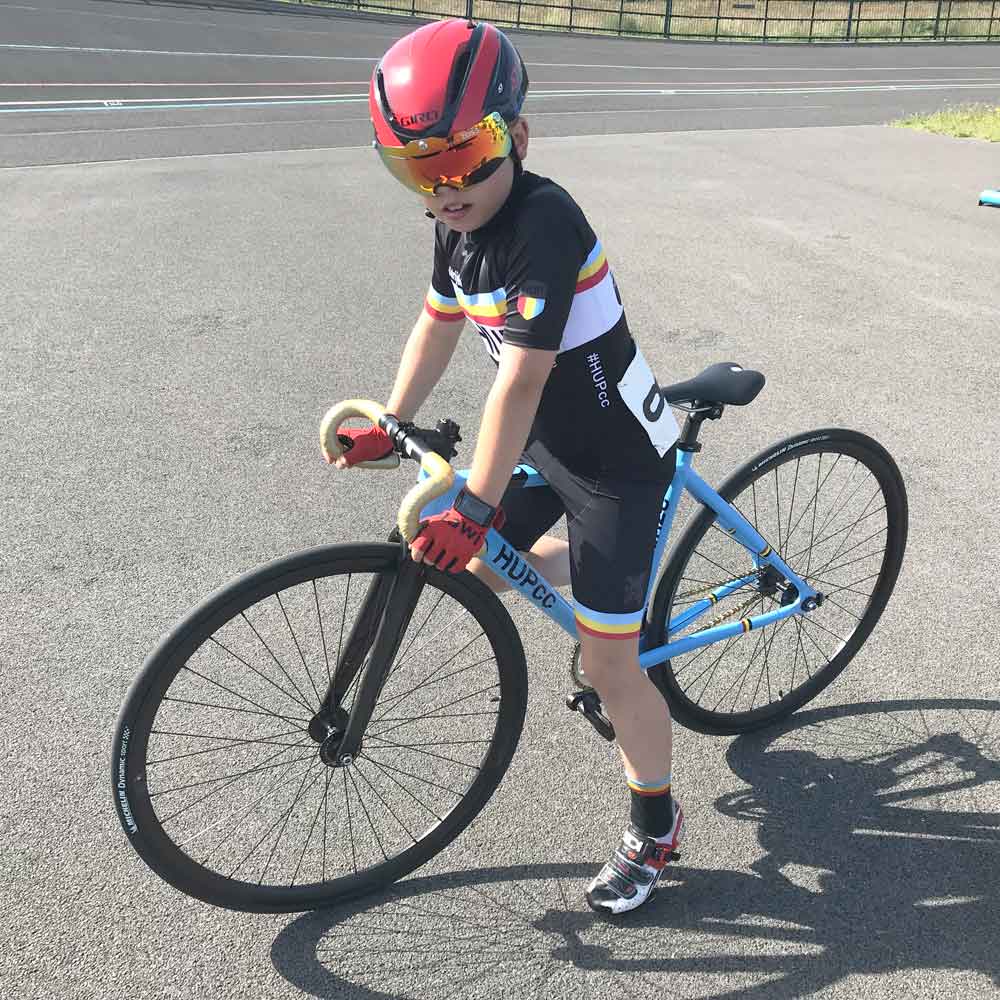

HUP framesets have been specifically developed for children's long leg/short torso physiology with short top-tubes (just 48cm long for the 37cm) and when built with HUP components, achieve unrivalled fit. Framesets are so lightweight, depending on build spec, UCI minimum weight bike builds are realistic. Photo examples above are a standard build 44cm @ 7.3kg (rider height 148cm) and a custom-build 37cm @ 6.8kg with pedals (rider height 130cm).

(Note: remaining framesets have small paint scratch on fork from shipping, which does not affect use)

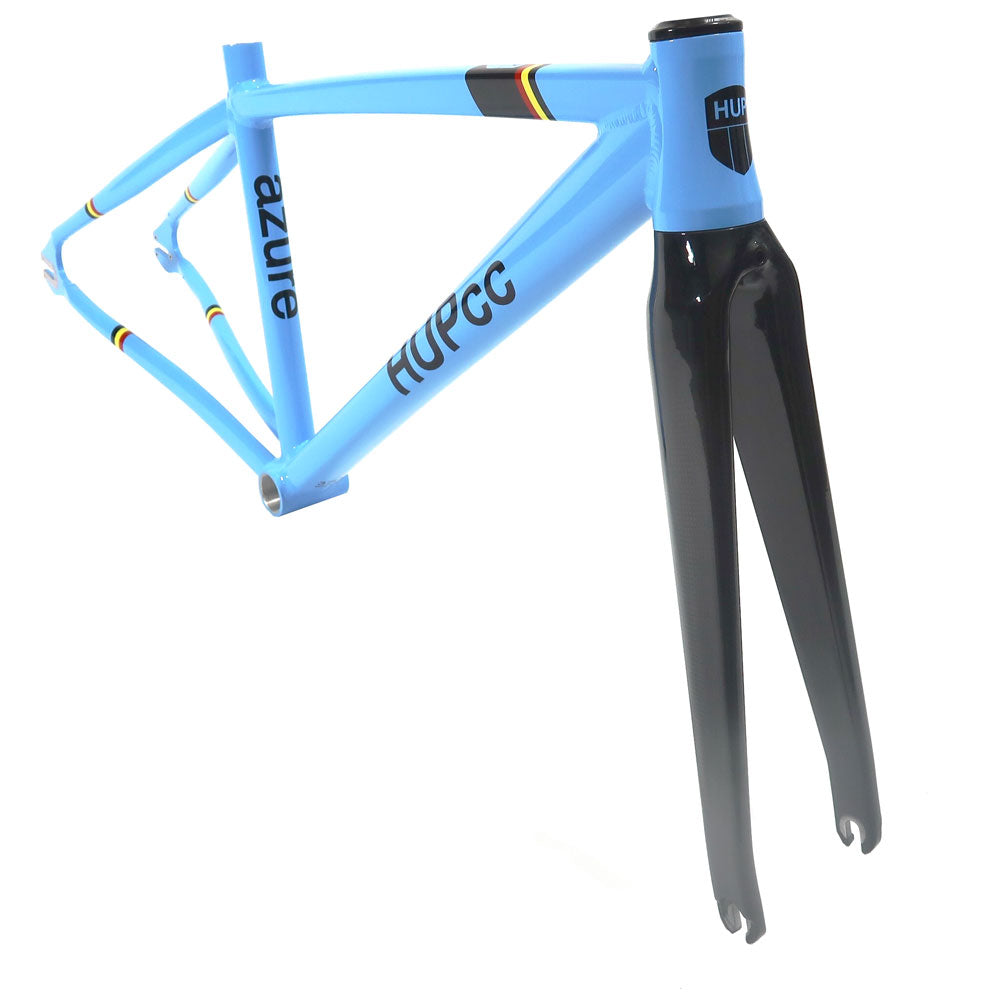

Included with this frameset: frame, fork, headset...

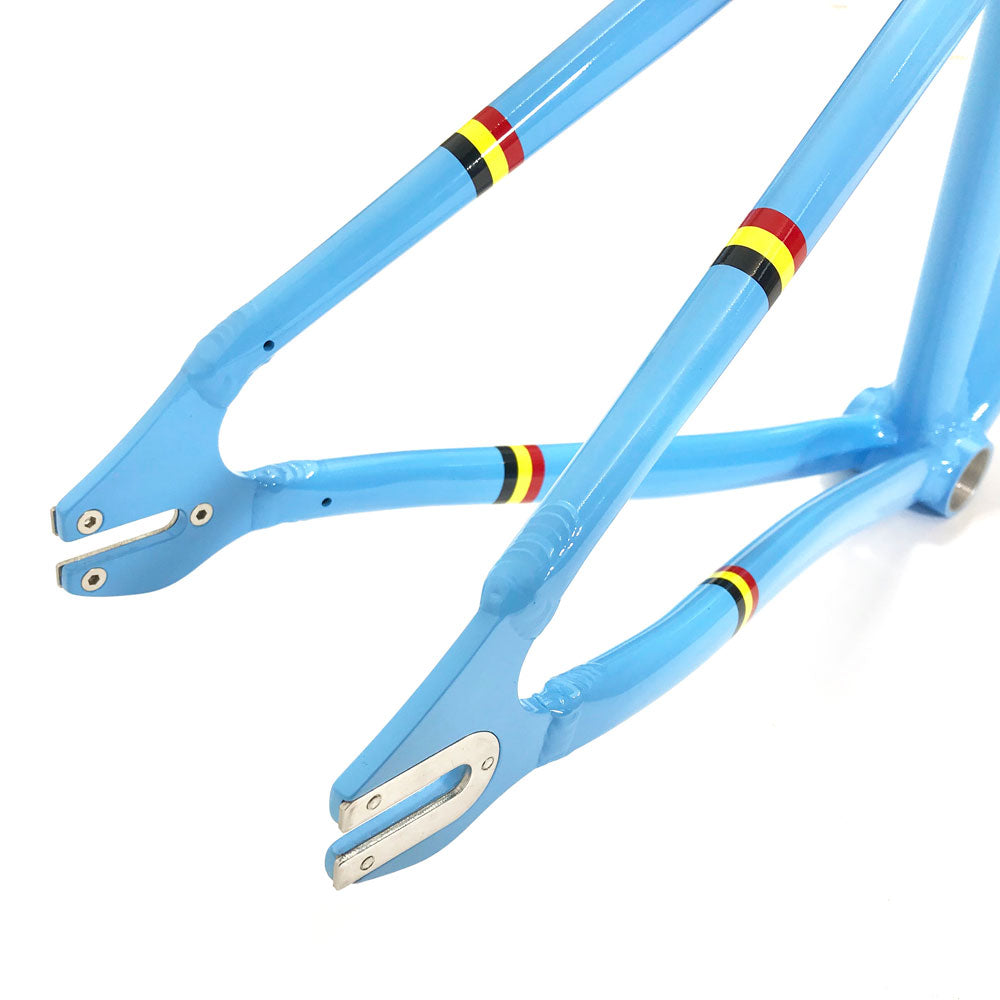

Frame Material: Aluminium Alloy 7005 (triple-butted)
Fork Material: Carbon fibre with alloy steerer, 1 1/8" tapered steerer
Frame Weight*: 37cm: 1285g | 44cm: 1315g | 48cm: 1380g | 50cm: 1450kg | 52cm: 1490kg
Fork Weight*: 530g

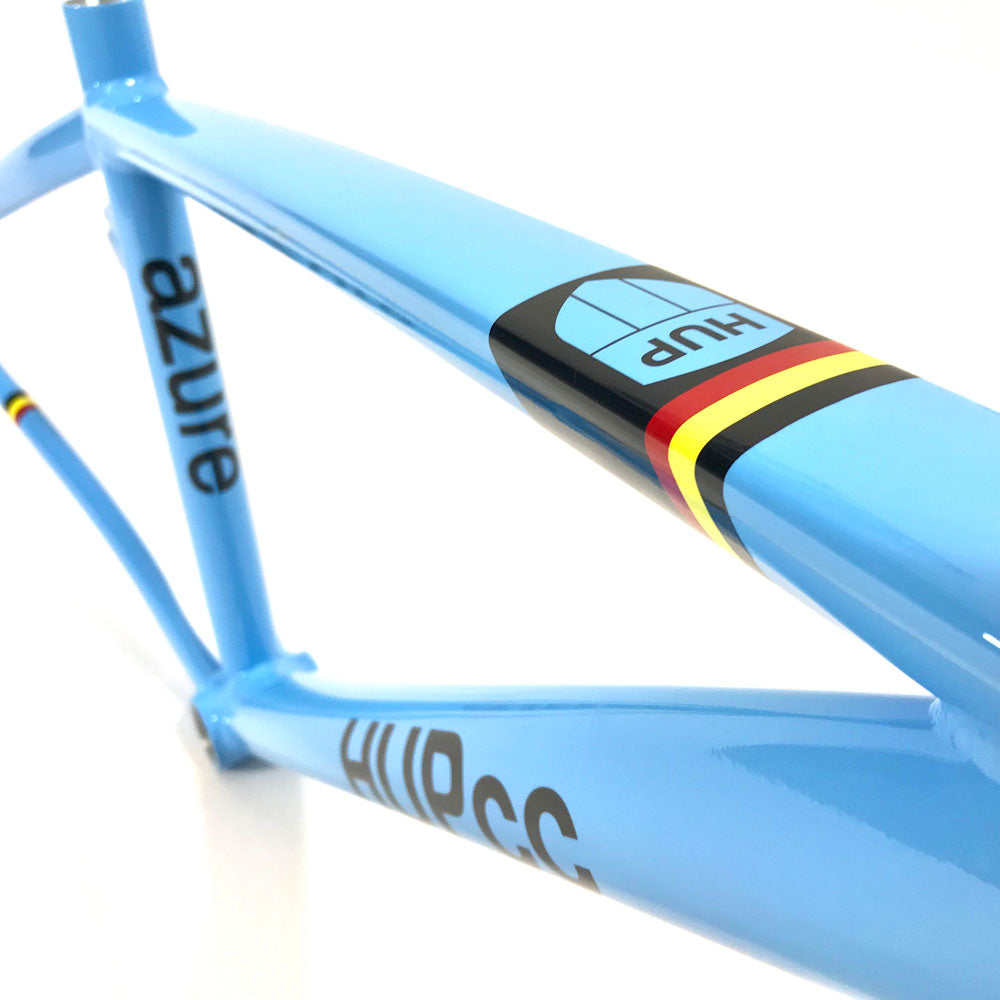

Colour: Belgian Blue with black carbon finish fork
Headset: Lightweight FSA No.42 ACB sealed bearing
Brake Type: n/a
Seatpost Diameter: 27.2mm
Bottom Bracket: 68mm English
Front Axle OLD: 100mm
Rear Axle OLD: 120mm
Tyre Clearance: 25c
Maximum Gearing: 50T

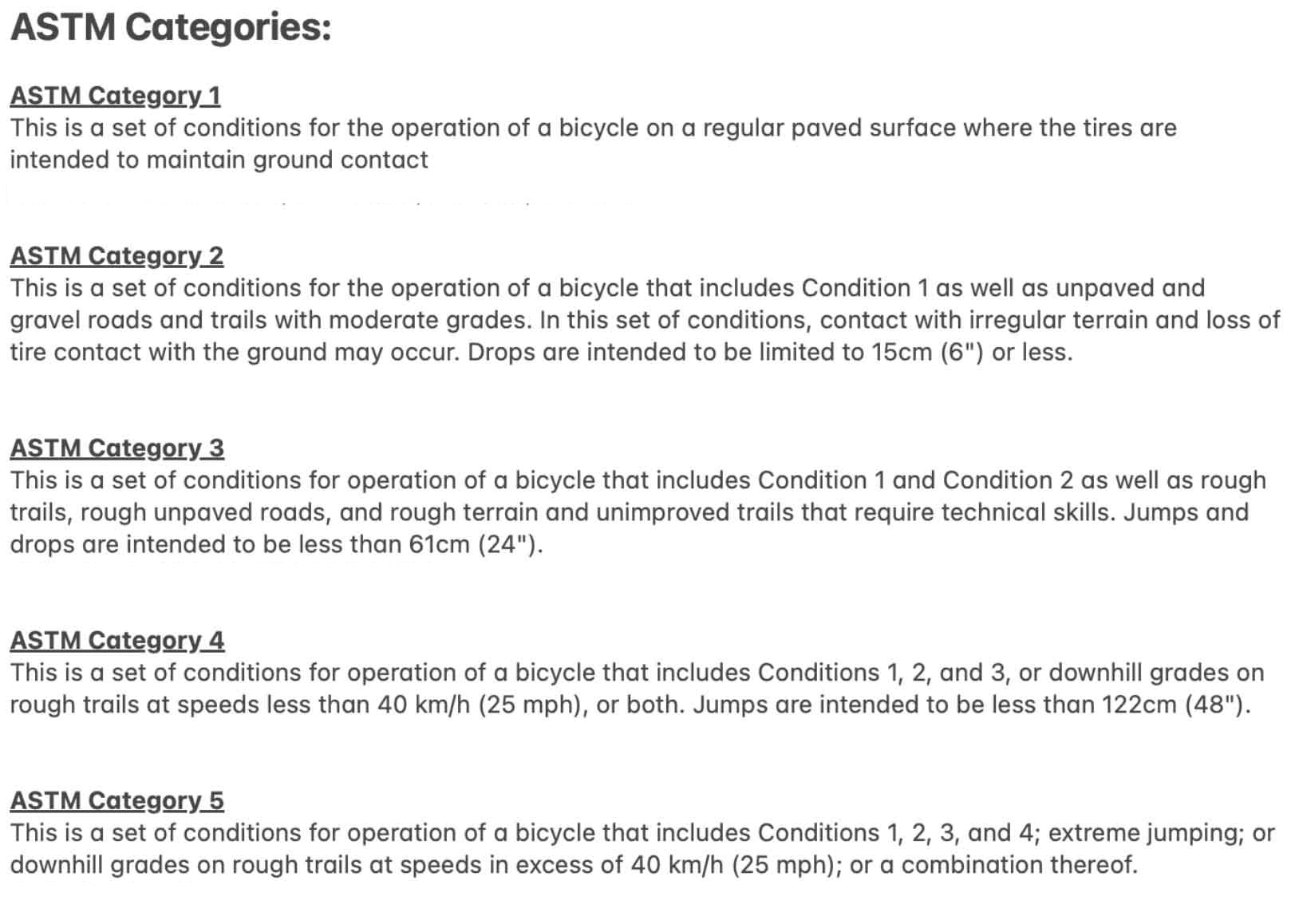

Max Weight: 100kg and ASTM category 1 useage

Age Range: 6-years old and up.
Recommended Min Inside Leg (bare-foot): 59cm (37cm) | 64cm (44cm) or see Sizing Guide
We measure our bikes from the floor up to the top-tube, in-front of the saddle, then minus 2cm for shoes (smaller is possible with experienced racers).
